Description
Our Stainless Steel Drum Lifter comes with a stainless steel drum picker that facilitates high quality and versatile drum handling. It can lift drums weighing between 50-220 litres and has a clean vibratory-polished finish by design. It is much suited to food and pharmaceutical production requirements while is also able to handle a wide range of drum sizes.
- 304-grade stainless steel construction
Corrosion-resistant and suitable for hygienic environments - Secure drum gripping system
Holds the drum safely during lifting - Mobile design with wheels
Easy movement across the workspace - Smooth and controlled lifting
Ensures safe and stable operation - Washdown-friendly and easy to clean
Ideal for sanitary applications
- Food and beverage industry
Hygienic drum handling - Pharmaceutical and cleanroom environments
Contamination-free operation - Chemical processing areas
Handling drums in corrosive conditions - Warehouse and storage facilities
Moving and positioning drums - General industrial use
Safe and efficient drum lifting
Specifications
DTP08-250kg-R500-SS
DTP08-250kg-R500-SS

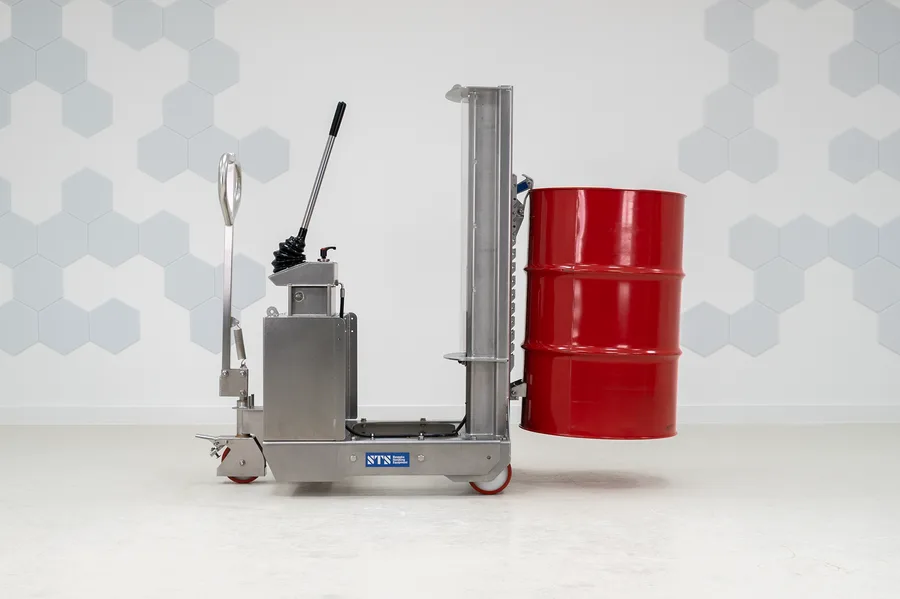

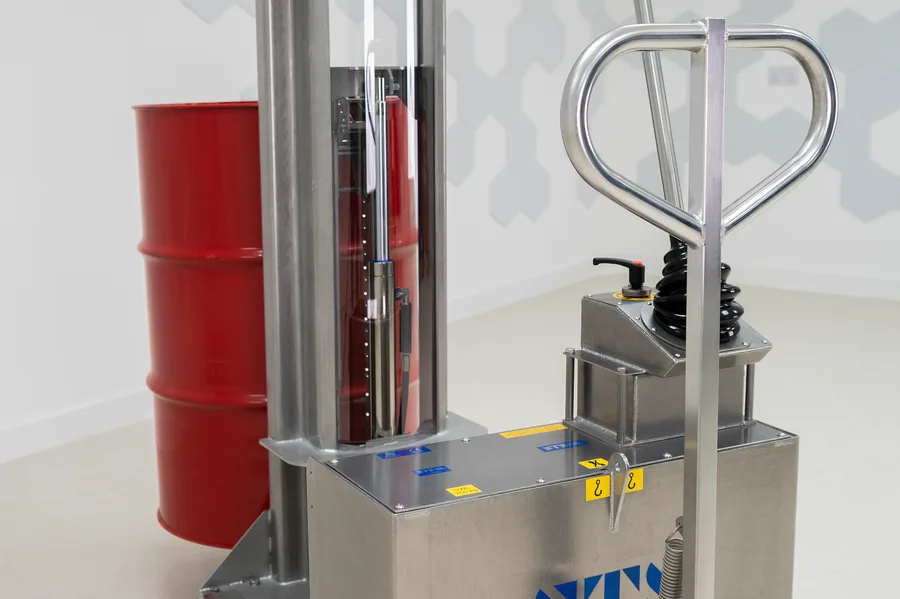

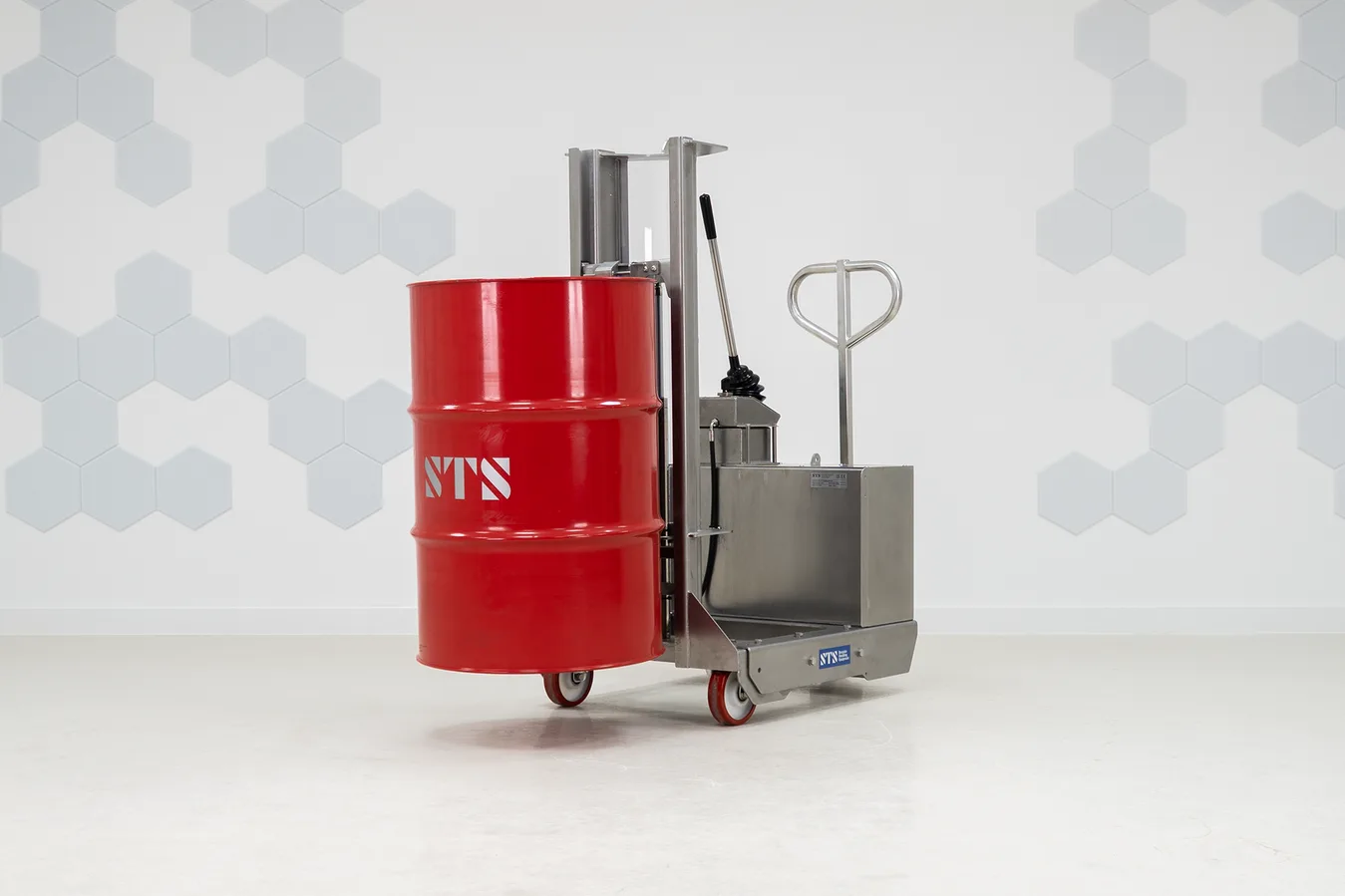

Stainless Steel Counterbalance Drum Lifter
Safe working load (SWL)
250kg
Pallet straddle
N/A
Pallet approach
Approaches any flat side of a pallet, no legs in front of the lifter
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Drum gripping catch
Adjustable catch for different drum lips, catch is also height adjustable
Lift stroke
500mm
Under-drum clearance
420mm
Lifting system

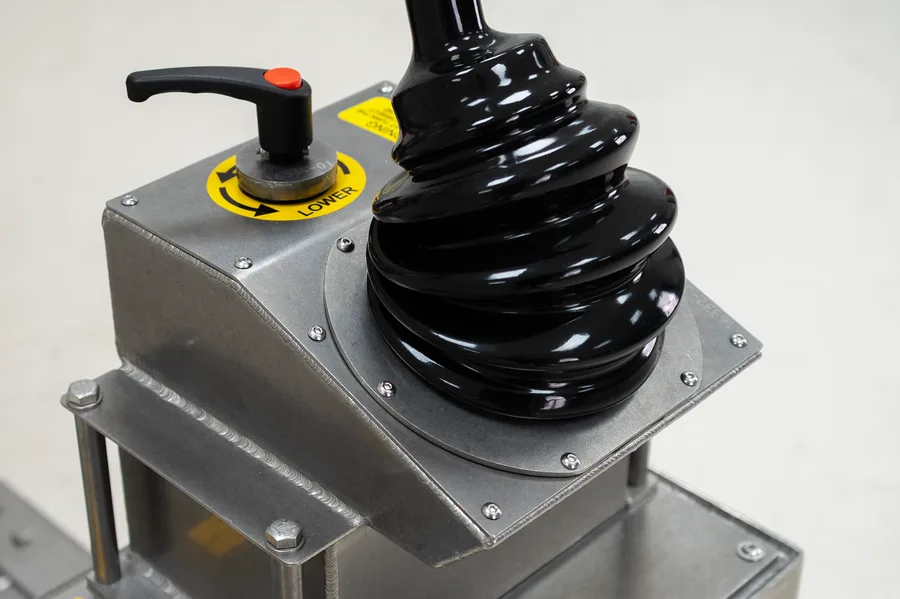

Hydraulic 13cc hand-operated aluminium pump with lowering valve and stainless steel shroud
Guarding
Shatterproof clear polycarbonate
Construction
Stainless steel 304-grade chassis, steel ram with nickel/chrome-plated finish
Metal preparation
Vibratory polished stainless steel
Surface finish
Smooth clean stainless steel finish
Front wheel type
Fixed 160mm, precision bearings
Front wheel material
Nylon-centred with polyurethane tyres
Rear wheel type
Single rear 160mm steerable wheel with precision bearings
Rear wheel material
Single rear 160mm steerable wheel with precision bearings
Compliance
CE / UKCA
DTP08-250kg-R500-SS-Ex
DTP08-250kg-R500-SS-Ex
ATEX Stainless Steel Counterbalance Drum Lifter
Safe working load (SWL)
250kg
Pallet straddle
N/A
Pallet approach
Approaches any flat side of a pallet, no legs in front of the lifter
Drum Compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Drum Gripping catch
Adjustable catch for different drum lips, catch is also height adjustable
Lift stroke
500mm
Under-drum clearance
420mm
Lifting system
Hydraulic 13cc hand-operated aluminium pump with lowering valve and stainless steel shroud
Guarding
Anti-static shatterproof clear polycarbonate
Construction
Stainless steel 304-grade chassis, steel ram with nickel/chrome-plated finish
Metal preparation
Vibratory polished stainless steel
Surface finish
Smooth clean stainless steel finish
Front wheel type
Fixed 160mm, precision bearings
Front wheel material
Nylon-centred with polyurethane tyres
Rear wheel type
Single rear 160mm steerable wheel with precision bearings
Rear wheel material
Single rear 160mm steerable wheel with precision bearings
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
