Description

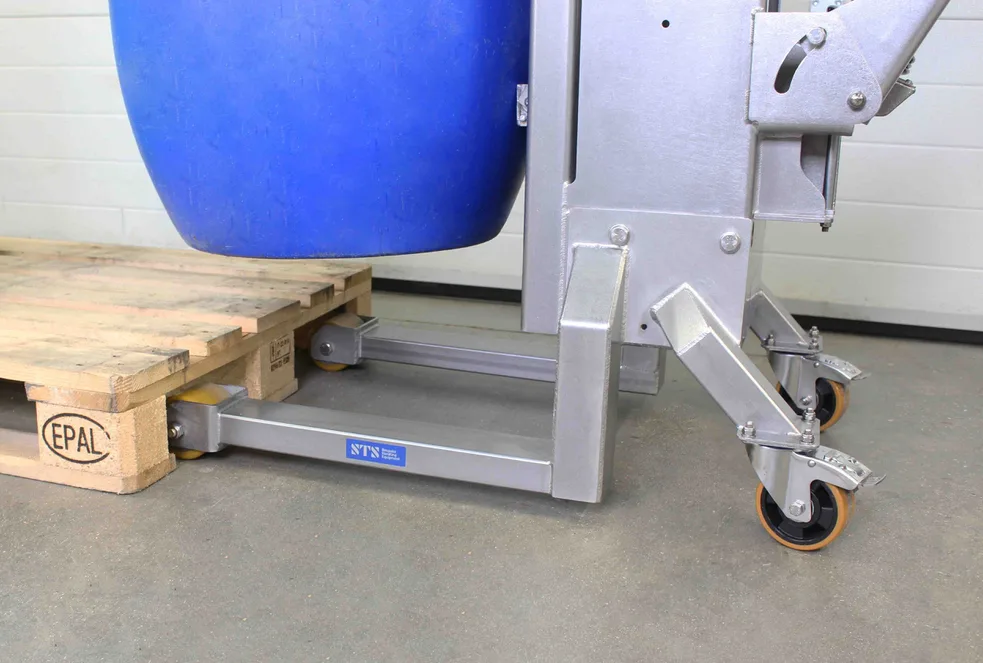

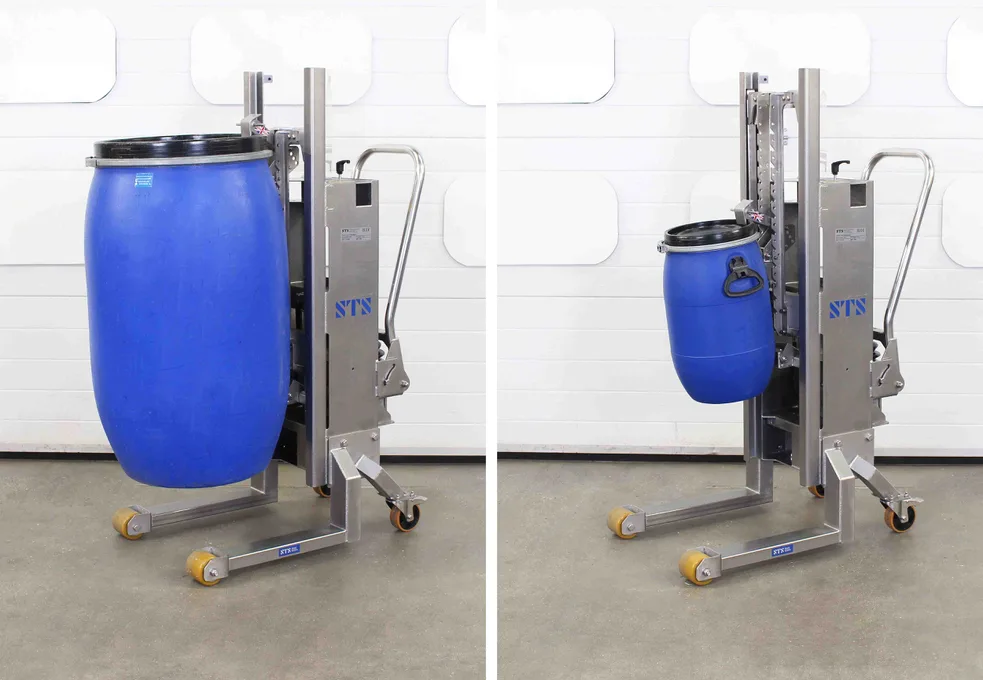

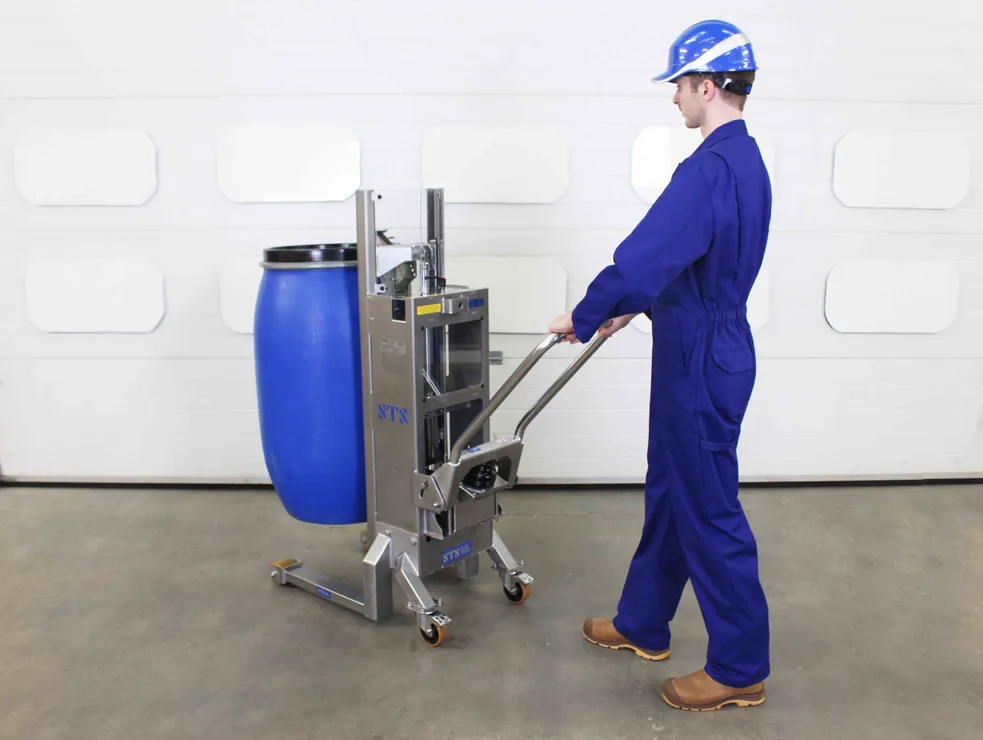

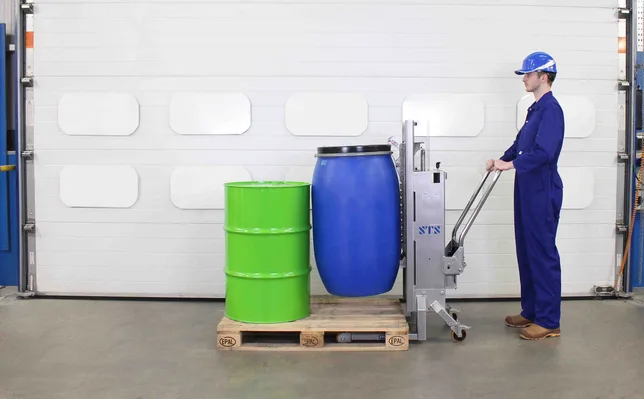

This is a great tool for transferring heavy drums between Euro pallets. It comes with a compact under-pallet leg design that can easily approach and access the drums on the pallet. Its unique leg design is compact and small, making it a competitive tool for cramped production environments. It can also handle a wide range of drum types and its gripper feature can be moved up and down on its rack assembly effortlessly. Another feature would be its manual-hydraulic lift system and is ATEX certified.
- 304-grade stainless steel construction
Corrosion-resistant and ideal for hygienic environments - Euro pallet-compatible design
Allows easy access to drums on Euro pallets - Hydraulic lifting system
Smooth and controlled lifting using a pump mechanism - Secure drum gripping system
Ensures safe and stable handling - Mobile design with wheels
Easy movement across the workspace
- Food and beverage industry
Hygienic handling of palletized drums - Pharmaceutical and cleanroom environments
Safe and contamination-free operation - Chemical processing areas
Handling drums in corrosive conditions - Warehouse and storage facilities
Lifting and moving drums from pallets - General industrial use
Efficient and hygienic drum handling
Specifications
DTP06-R500-SS
DTP06-R500-SS
Stainless Steel Euro Pallet Drum Lifter
Safe working load (SWL)
350kg
Leg design
Low-level, 315mm internal, maximum width 555mm
Pallet Approach
Designed for lifting from Euro pallets, bunds, or conveyors providing the base is open to the ground
Leg design
Note: this model will not place drums on the ground as the legs are directly beneath the drum
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Drum gripping catch
Adjustable catch for different drum lips, catch is also height adjustable
Lift Stroke
500mm
Under-drum clearance
420mm
Lifting System
Hydraulic 17cc hand-operated pump with lowering valve
Guarding
Shatterproof clear polycarbonate
Construction
Stainless steel 304-grade chassis, steel zinc/nickel-coated hydraulic lift ram, aluminium hand pump in stainless steel shroud
Metal Preparation
Vibratory polished stainless-steel parts
Surface Finish
Smooth clean stainless-steel finish
Front wheel type
Fixed 85mm, precision bearings
Front wheel material
Aluminium-centred withpolyurethane tyres
Rear wheel type
Braked castors 100mm, precision bearings
Rear wheel matrial
Nylon centred with polyurethane tyres
Compliance
CE / UKCA
DTP06-R500-SS-Ex
DTP06-R500-SS-Ex
ATEX Stainless Steel Euro Pallet Drum Lifter
Safe working load (SWL)
350kg
Leg design
Low-level, 315mm internal, maximum width 555mm
Pallet Approach
Designed for lifting from Euro pallets, bunds, or conveyors providing the base is open to the ground
Leg design
Note: this model will not place drums on the ground as the legs are directly beneath the drum
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Drum gripping catch
Adjustable catch for different drum lips, catch is also height-adjustable
Lift Stroke
500mm
Under-drum clearance
420mm
Lifting System
Hydraulic 17cc hand-operated pump with lowering valve
Guarding
Anti-static shatterproof clear polycarbonate
Construction
Stainless steel 304-grade chassis, steel zinc/nickel-coated hydraulic lift ram, aluminium hand pump in stainless steel shroud
Metal Preparation
Vibratory polished stainless-steel parts
Surface Finish
Smooth clean stainless-steel finish
Front wheel type
Fixed 85mm, precision bearings
Front wheel material
Aluminium-centred withanti-static polyurethane tyres
Rear wheel type
Braked castors 100mm, precision bearings
Rear wheel matrial
Aluminium-centred with anti-static polyurethane tyres
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21 and 22)
