Description

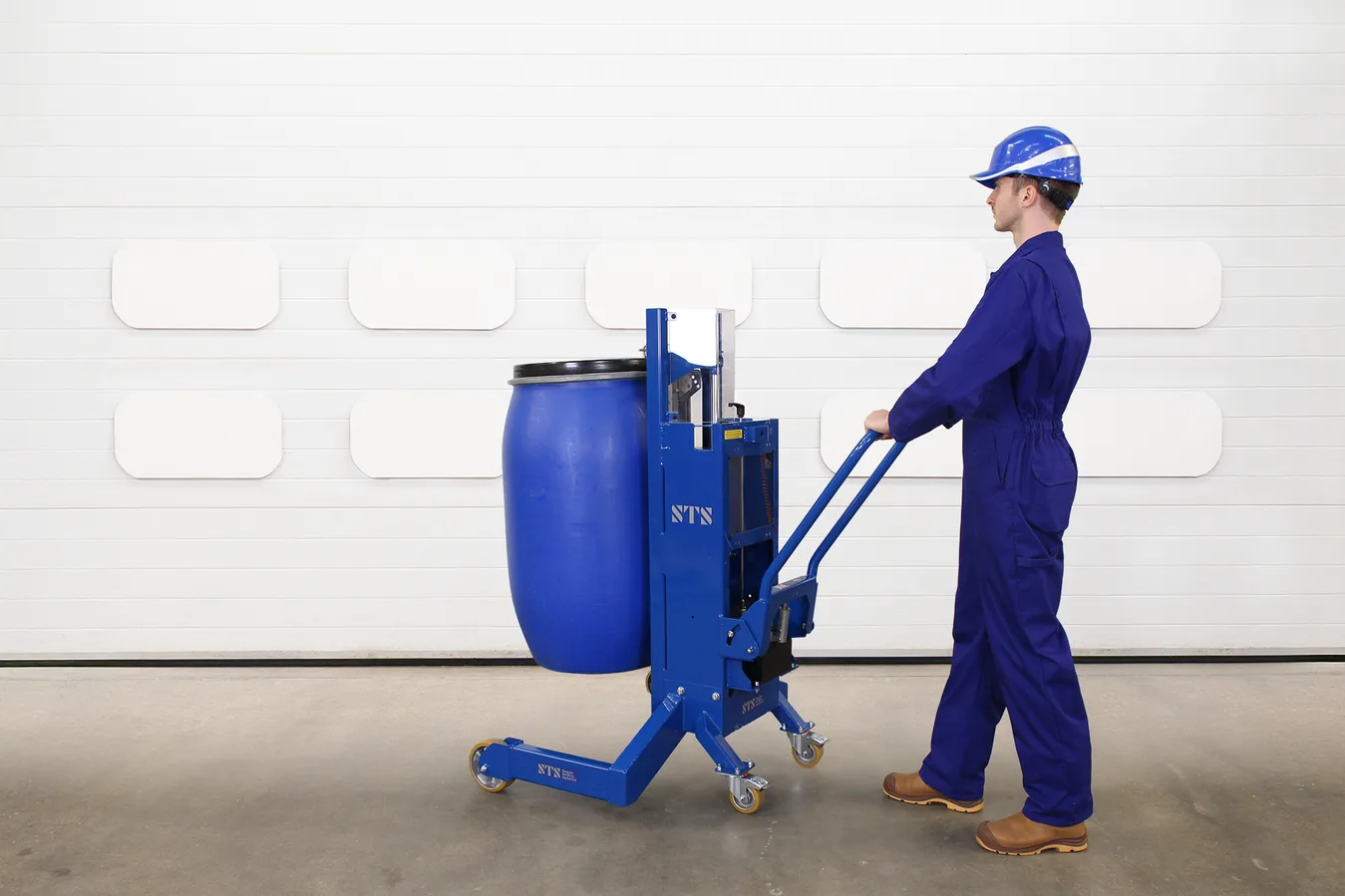

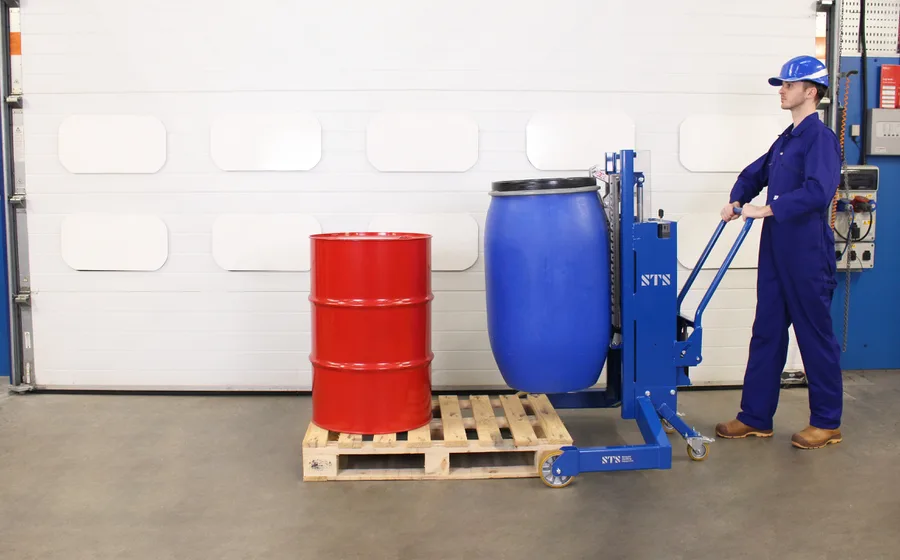

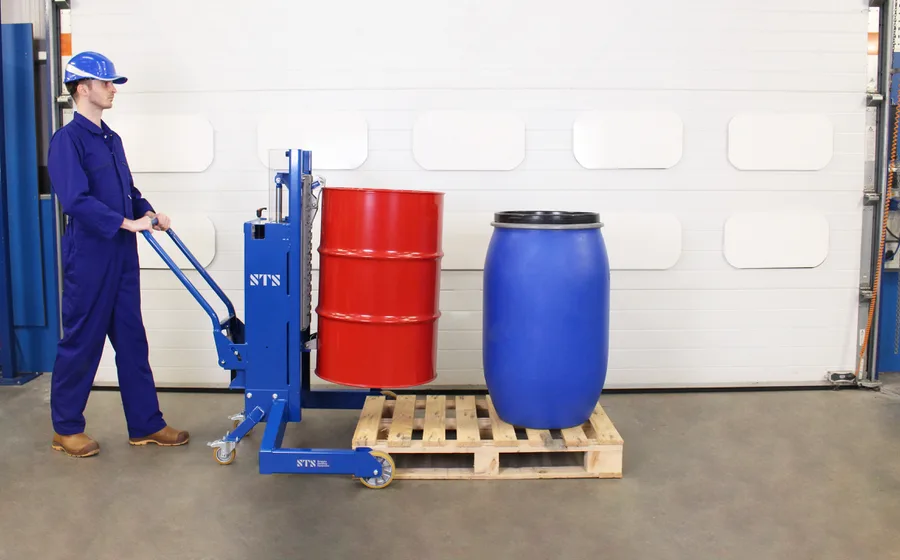

Manual Drum Lifters primarily allow operators to lift drums off Euro pallets. This unit is capable of straddling the narrow 800mm end of a Euro pallet, lifting a drum and then transporting it. It comes with a universal drum catcher, which connects to a wide variety of drums and has a 350 kg capacity. It is fully adjustable, low maintenance and now ATEX available.
- Manual lifting mechanism
Operated using a hand pump or mechanical system - No power required
Ideal for simple and cost-effective operation - Secure drum gripping system
Holds the drum safely during lifting - Mobile design with wheels
Easy to move across the workspace - Simple and low-maintenance design
Reliable for everyday use
- Warehouse and storage handling
Lifting and moving drums within facilities - Loading and unloading operations
Handling drums from floor or pallets - Workshops and small industrial setups
Ideal for low to moderate usage - Manufacturing and production areas
Positioning drums near workstations - General industrial drum handling
Safe and efficient everyday use
Specifications
DTP03-R500
DTP03-R500
Manual Drum Lifter
Safe working load (SWL)
350kg
Leg design
Straddle legs designed to go around the narrow 800mm wide end of a Euro pallet
Pallet Approach
Designed for lifting drums from the floor or from Euro pallets
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Drum gripping catch
Adjustable catch for different drum lips, catch is also height adjustable
Lift Stroke
500mm
Under-drum clearance
420mm
Lifting System
Hydraulic 17cc hand-operated pump with lowering valve
Guarding
Shatterproof clear polycarbonate
Metal Preparation
Grit blasted mild steel, vibratory polished stainless steel parts
Surface Finish
Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Unit Colour
RAL 5010 (blue)
Front wheel type
Fixed 160mm, precision bearings
Front wheel material
Aluminium-centred, polyurethane tyres
Rear wheel type
Braked castors 100mm, precision bearings
Rear wheel matrial
Aluminium-centred, polyurethane tyres
Compliance
CE / UKCA
DTP03-R500-Ex
DTP03-R500-Ex
ATEX Manual Drum Lifter
Safe working load (SWL)
350kg
Leg design
Straddle legs designed to go around the narrow 800mm wide end of a Euro pallet
Pallet Approach
Designed for lifting from the floor or from Euro pallets
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Drum gripping catch
Adjustable catch for different drum lips, catch is also height adjustable
Lift Stroke
500mm
Under-drum clearance
420mm
Lifting System
Hydraulic 17cc hand-operated pump with lowering valve
Guarding
Anti-static shatterproof clear polycarbonate
Metal Preparation
Grit blasted mild steel, vibratory polished stainless steel parts
Surface Finish
Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Unit Colour
RAL 5010 (blue)
Front wheel type
Fixed 160mm, precision bearings
Front wheel material
Aluminium-centred, anti-static polyurethane tyres
Rear wheel type
Braked castors 100mm, precision bearings
Rear wheel matrial
Aluminium-centred, anti-static polyurethane tyres
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
