Description

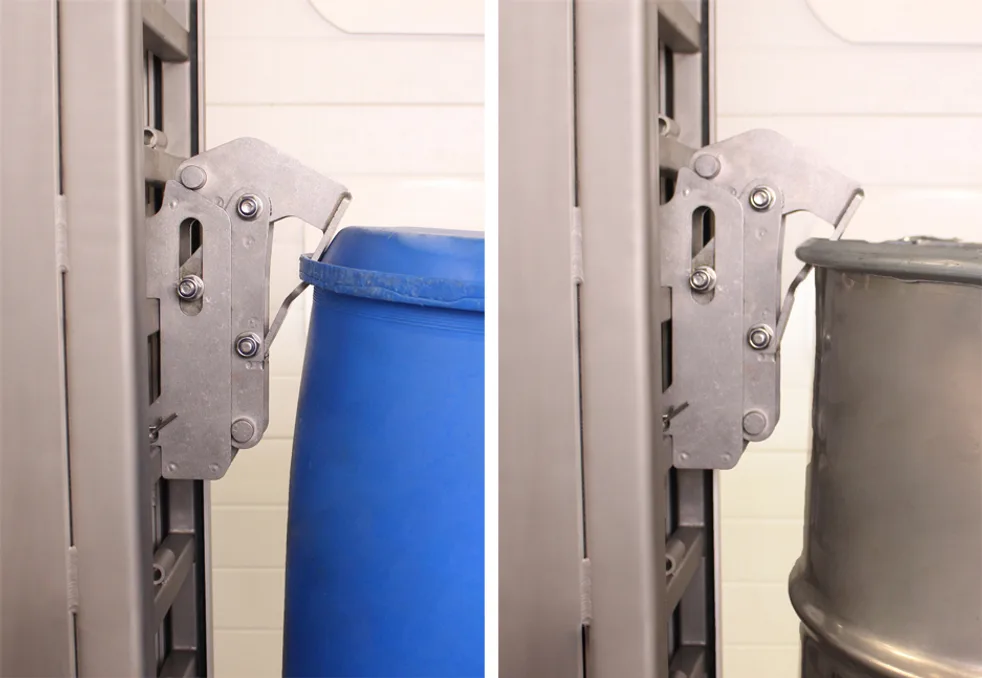

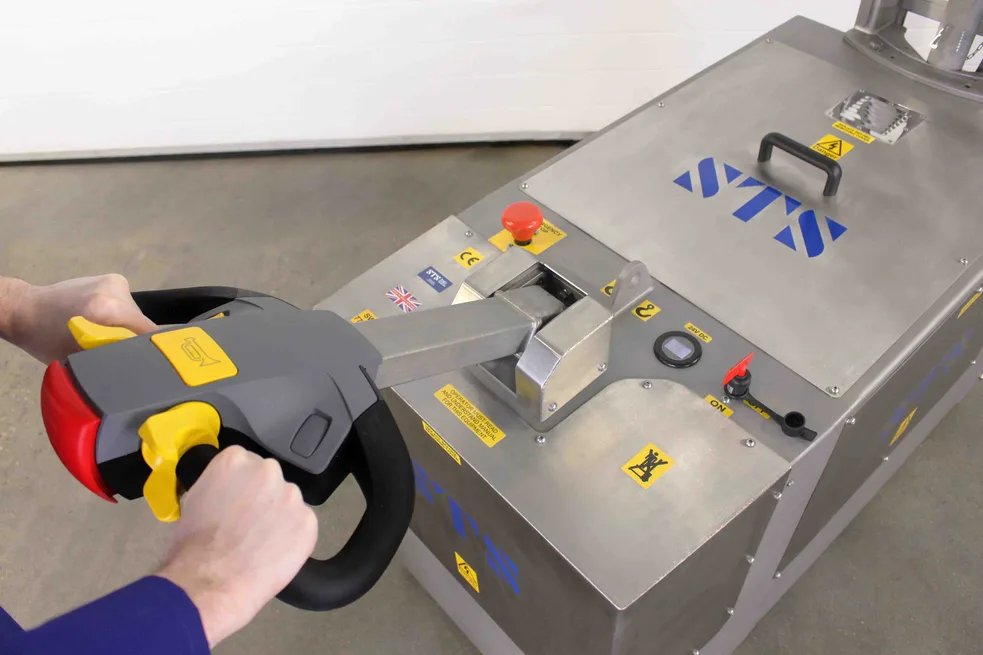

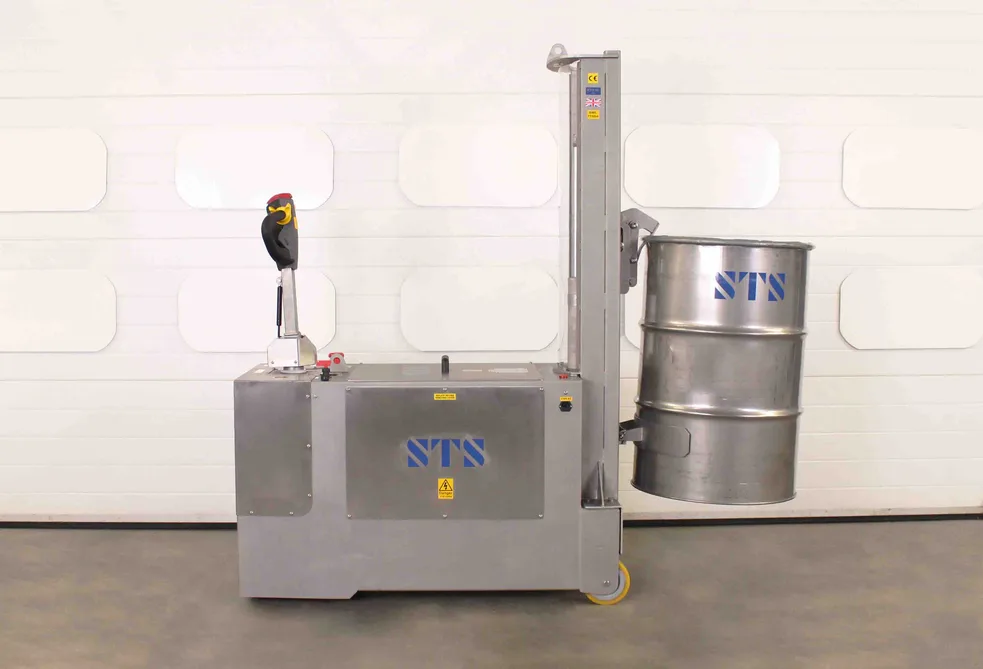

An ideal tool for those who wish to improve productivity in their operations and eliminate tireful, injury-prone manual handling, this unit enables operators to handle drums of up to 350kg with ease. While its automatic beak gripper can connect to a wide range of drums, its powered tiller at the rear offers easy maneuvering and precise placement of drums and barrels. It also has a battery powered drive system, with two 180Ah batteries and a 1000W, 24V electric drive motor.

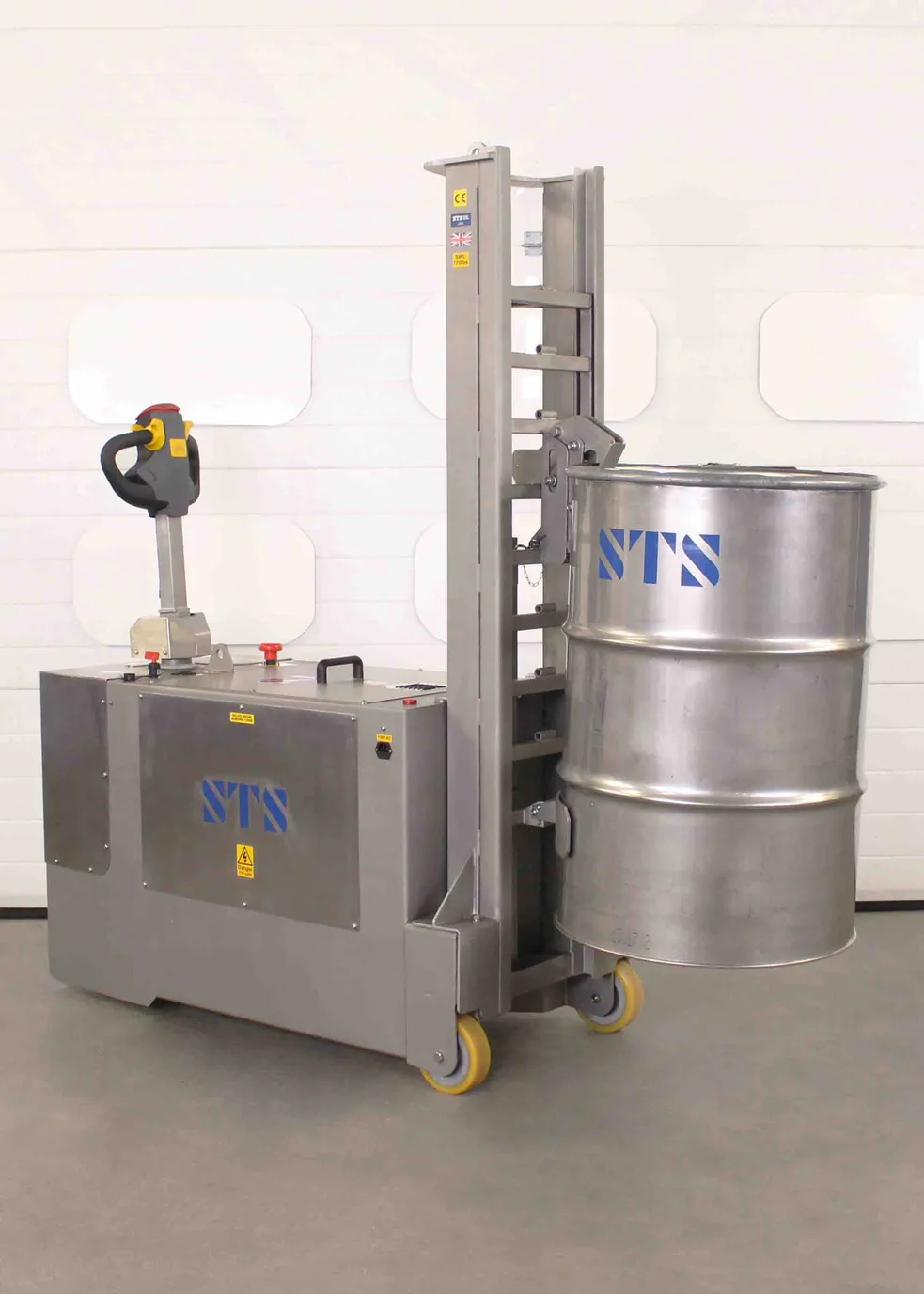

- Counterbalance design allows drum handling without front legs obstructing access.
- Stainless steel construction offers corrosion resistance and hygienic operation.
- Designed for lifting, transporting, and rotating heavy industrial drums safely.
- Ergonomic controls improve operator comfort and handling precision.
- Suitable for cleanroom, food, pharmaceutical, and chemical environments.
- Compact maneuverability supports use in confined production and storage areas.

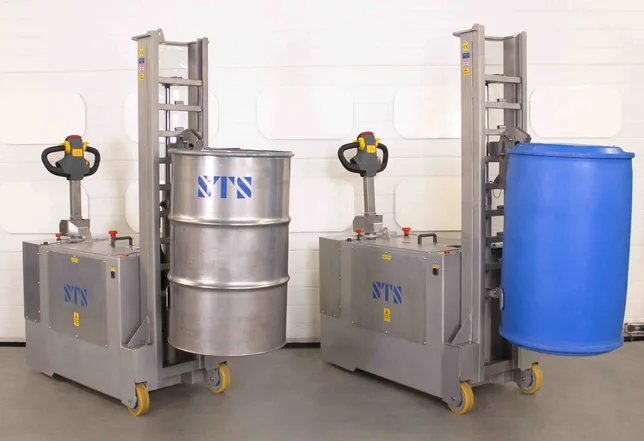

- Handling stainless steel or plastic drums in food processing plants.
- Transporting chemical drums in laboratories and manufacturing facilities.
- Lifting and positioning drums for filling, emptying, or dispensing operations.
- Supporting hygienic material handling in pharmaceutical production areas.
- Moving drums in warehouses, cleanrooms, and industrial storage facilities.
- Rotating drums for controlled pouring and process transfer applications.
Specifications
DPC01-R500-SS
DPC01-R500-SS
Stainless Steel Drum Handler (Counterbalance)
Safe working load (SWL)
350kg
Pallet straddle
N/A
Pallet Approach
Approaches any flat side of a pallet, no legs in front of the lifter
Drum compatibility
Steel, plastic and fibreboard drums, 100-220 litres (incl. MAUSER drums)
Drum gripping catch
Automatic drum gripper suitable for use with different drum lips, catch is also height adjustable
Lift Stroke
500mm
Under-drum clearance
320mm
Lifting System
Electric-hydraulic lift via hydraulic pump and ram arrangement
Guarding
Shatterproof clear polycarbonate
Metal Preparation
Aqua blasted and vibro-polished stainless steel parts
Surface Finish
Smooth clean stainless steel finish
Front wheels
Fixed 160mm castors with precision bearings, aluminium centred with polyurethane tyres
Rear wheel
Electric power drive wheel, 24V, 1000W
Tiller drive control
Rear tiller drive, includes lift control, emergency stop button and anti-trap protection button
On-board charger
230V on-board smart battery charger with drive-disable function
Compliance
CE / UKCA
