Description

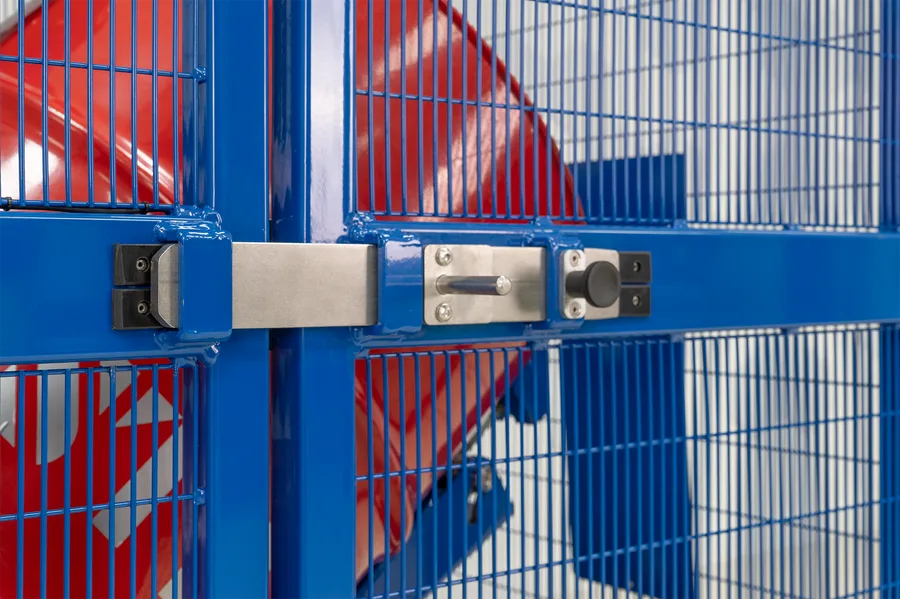

With features as same as the Electric Drum Tumbler, this Drum Mixer comes with ATEX certification and safety gate interlocks–the mixing function can only be activated once the gates have been closed. It also offers consistent outcomes, cutting-edge precision and is designed for 200-220 steel, plastic and fireboard drums.
- ATEX-approved design
Safe for use in flammable and explosive environments - Explosion-protected electric operation
Ensures safe and reliable performance - Controlled drum rotation/tumbling
Provides consistent and effective mixing - Closed-drum mixing capability

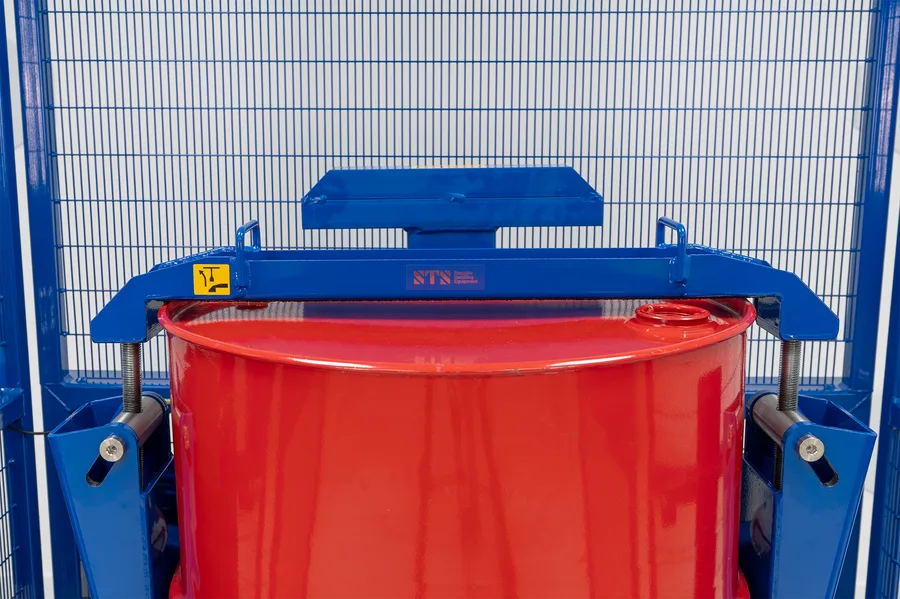

Mix contents without opening the drum - Secure drum holding system
Keeps the drum stable during operation
- Hazardous and ATEX-zoned areas
Safe mixing in explosive environments - Chemical and process industries
Handling volatile or sensitive materials - Oil, fuel, and solvent operations
Mixing flammable liquids safely - Paint and coatings industry
Re-blending materials in sealed drums - General industrial mixing
Controlled and safe drum blending
Specifications
DME01-230V-10RPM-Ex
DME01-230V-10RPM-Ex
Drum Mixer (ATEX)
Rated capacity
300kg
Drum compatibility
Drums from 860mm to 1010mm in height and up to a maximum of 600mm in diameter
Gearbox and motor
Worm-wheel primary gearbox with 42mm shaft and 0.75kW ATEX motor
Rotation RPM Range
2 to 10 RPM
Power requirements
Mains 230V or 120V, single phase power supply
Control features

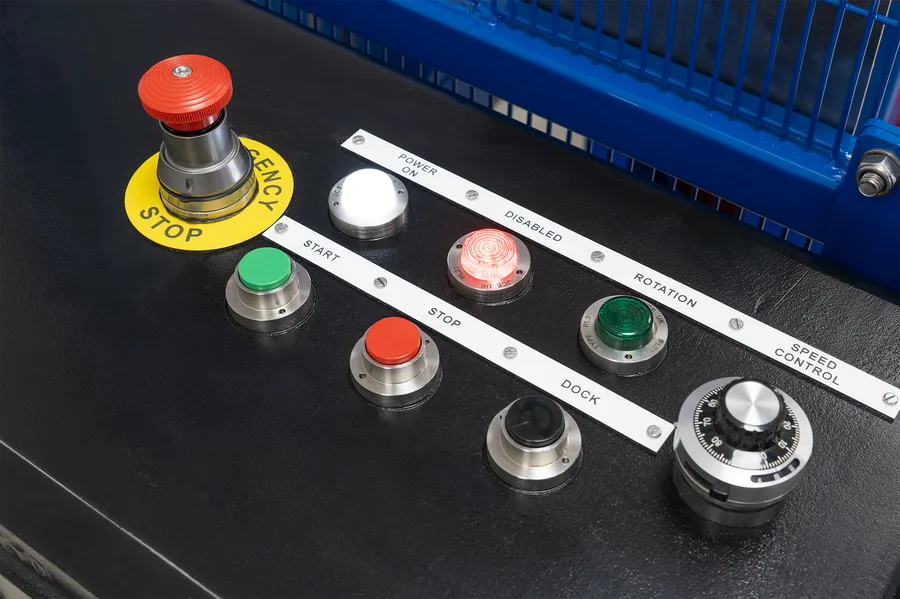

Isolator switch, start/stop buttons, home button (returns drum to vertical), rotation speed control, power light, disabled light, rotation light, emergency stop button
Duty cycle
Continuous 360° rotation
Safety gate interlock and full guarding
Safety gate interlock and full guarding
Emergency stop button
Yes
Construction
Mild steel construction
Metal preparation and surface finish
Grit blasted mild steel, primer and polyester powder coated
Powder coat colour
RAL 5010 (blue)
Mobility
Anti-static/conductive wheels fitted for easy positioning, jacking feet also supplied for static positioning
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
