Description
Plastic Jerrycan Mixer is popular with customers who work with small batch sizes. With this 230V powered, Machinery Directive compliant, end-over-end machine, you can mix four plastic jerrycan simultaneously. After the four loads are loaded into the mixer head, they’re then fixed using a simple clamp-down arrangement. The mixing is started using a control panel after that.

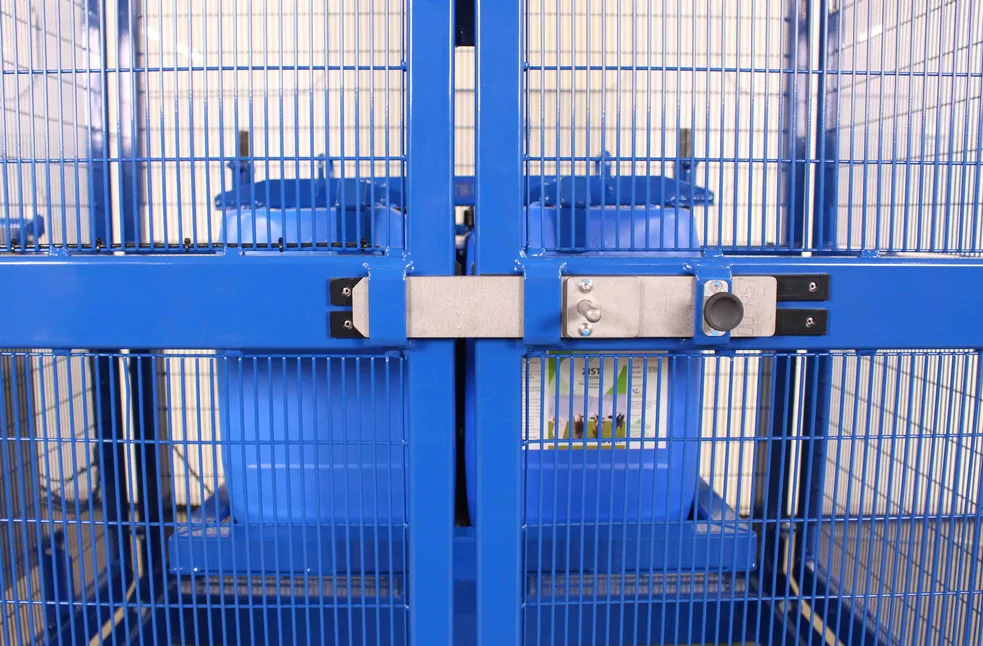

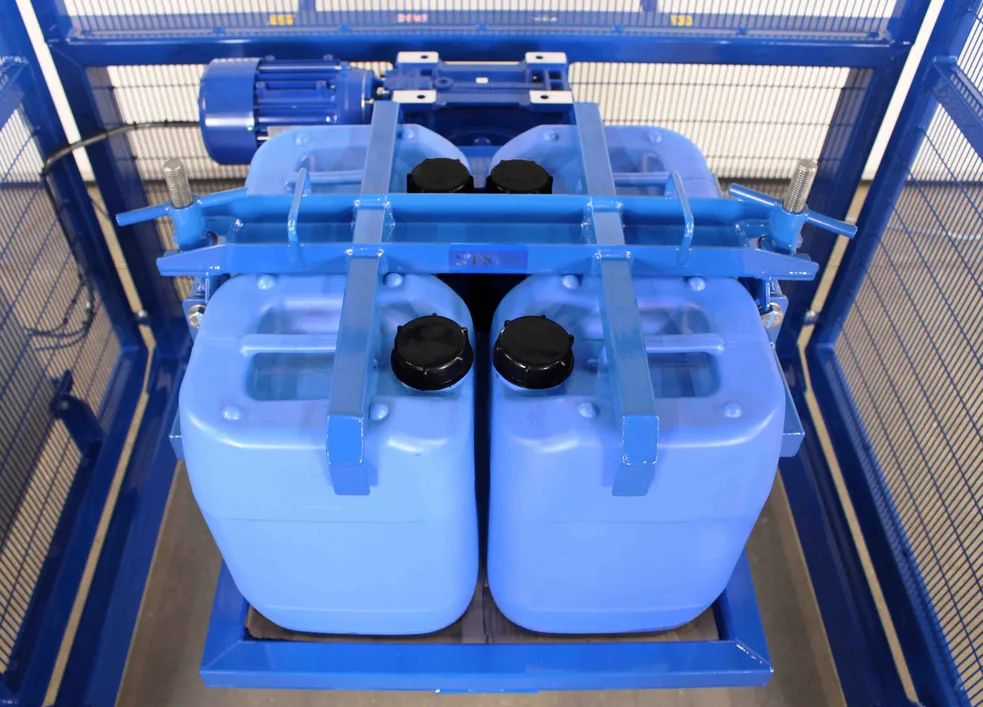

Its key features include an Electric Control System, a compact Head Assembly and a Safety Gate Interlock.
- Multi-container mixing (up to 4 jerrycans)
Efficient batch processing of small containers - Designed for 25-litre plastic jerrycans
Ideal for small to medium volume mixing - Controlled rotation speed (10 RPM)
Ensures gentle and uniform blending - Electric motor operation (230V)
Reliable and consistent performance - Secure container holding system
Keeps jerrycans stable during operation
- Chemical and process industries
Mixing small batches of materials - Paint, coatings, and specialty products
Ensuring consistent blending - Food and ingredient processing
Mixing sealed containers hygienically - Laboratories and small-scale production
Controlled and repeatable mixing - General industrial use
Efficient multi-container mixing
Specifications
DME01-PJC-230V-25L-4
DME01-PJC-230V-25L-4
Plastic Jerrycan Mixer (25 Litre, 4 Containers)
Rated capacity
150kg
Container compatibility
Suitable for 4 x 25 litre plastic jerrycans
Rotation RPM
24 RPM
Power requirements
Mains 230V (or 120V), single phase, 16A
Duty cycle
Continuous 360° rotation
Safety gate interlock and full guarding
Yes
Emergency stop button
Yes
Mix timer and speed adjustment
Yes
Construction
Mild steel construction
Metal preparation and surface finish
Grit blasted mild steel, primer and polyester powder coated
Powder coat colour
RAL 5010 (blue)
Mobility
Wheels fitted for easy positioning, jacking feet also supplied for static positioning
Compliance
CE / UKCA
