Description
You can avail our Powered Drum trippers in two main varieties: Pneumatic version and an Electric version.
The electric ones are ideal for safe areas and this fully powered drum tipper comes with a 24v onboard battery bank and a powerful drive motor.
The pneumatic version is suitable to areas that are categorized to be hazardous. They are certified to use ATEX environments as well. Usually, the operator connects an airline to power pneumatic – hydraulic functions, which powers the lift rotation and drive of the machine.
- Fully Powered Operations: Power drive, electric-hydraulic lift, hydraulic clamp, and powered rotation (180° inversion).
- Safe Working Load (SWL): 300kg capacity.
- Clamping System: A hydraulic constant-tension clamping head with rubber pads grips the outside of the drum, with a pressure gauge to ensure secure holding. This allows for ‘hands-off’ operation.
- ATEX Certification (STP05-RRH01-Ex): The pneumatic model is ATEX/UKEX certified for zones 1, 2, 21, and 22 (hazardous areas).

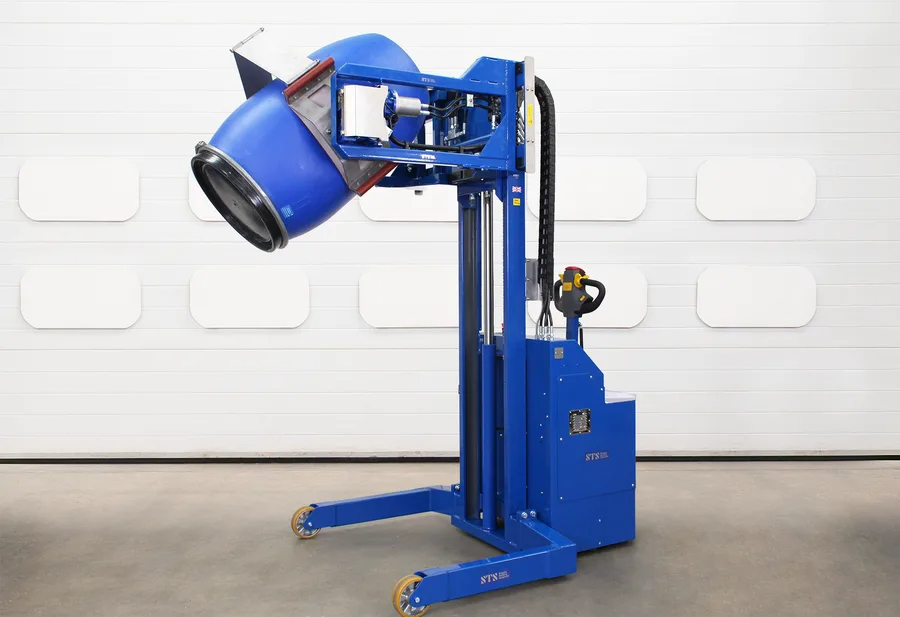

- Versatility: Handles drums 50-220 litres, including plastic (L-ring) and steel drums.

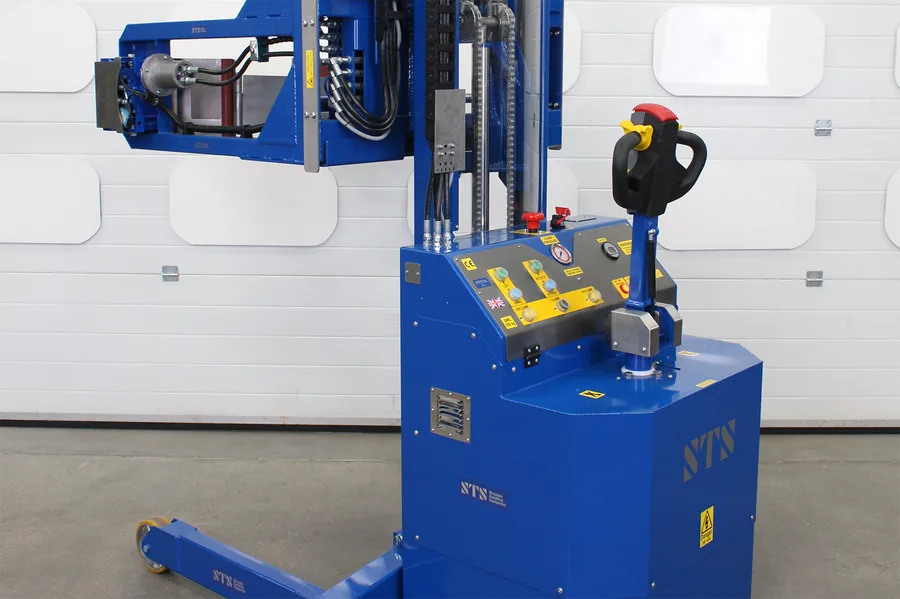

- Lift Height & Control: Standard lift height of 1500mm, with steerable tiller control and an anti-trap safety switch.
- Construction: Available in mild steel (powder-coated) or 304-grade stainless steel for hygienic, chemical, or food-grade applications
- Chemical Manufacturing: Pouring chemicals or powders in hazardous, explosive (ATEX) zones.
- Food & Pharmaceutical Processing: The stainless steel (SS) variants are ideal for hygienic environments needing regular washdown.
- Pallet Loading: Ability to lift drums directly from the corner of a pallet.
- Mixing & Dispensing: Full 180-degree rotation allows for total inversion of drums, emptying viscous liquids or powders into vessels or containers.
Specifications
STE05-RRH01
STE05-RRH01

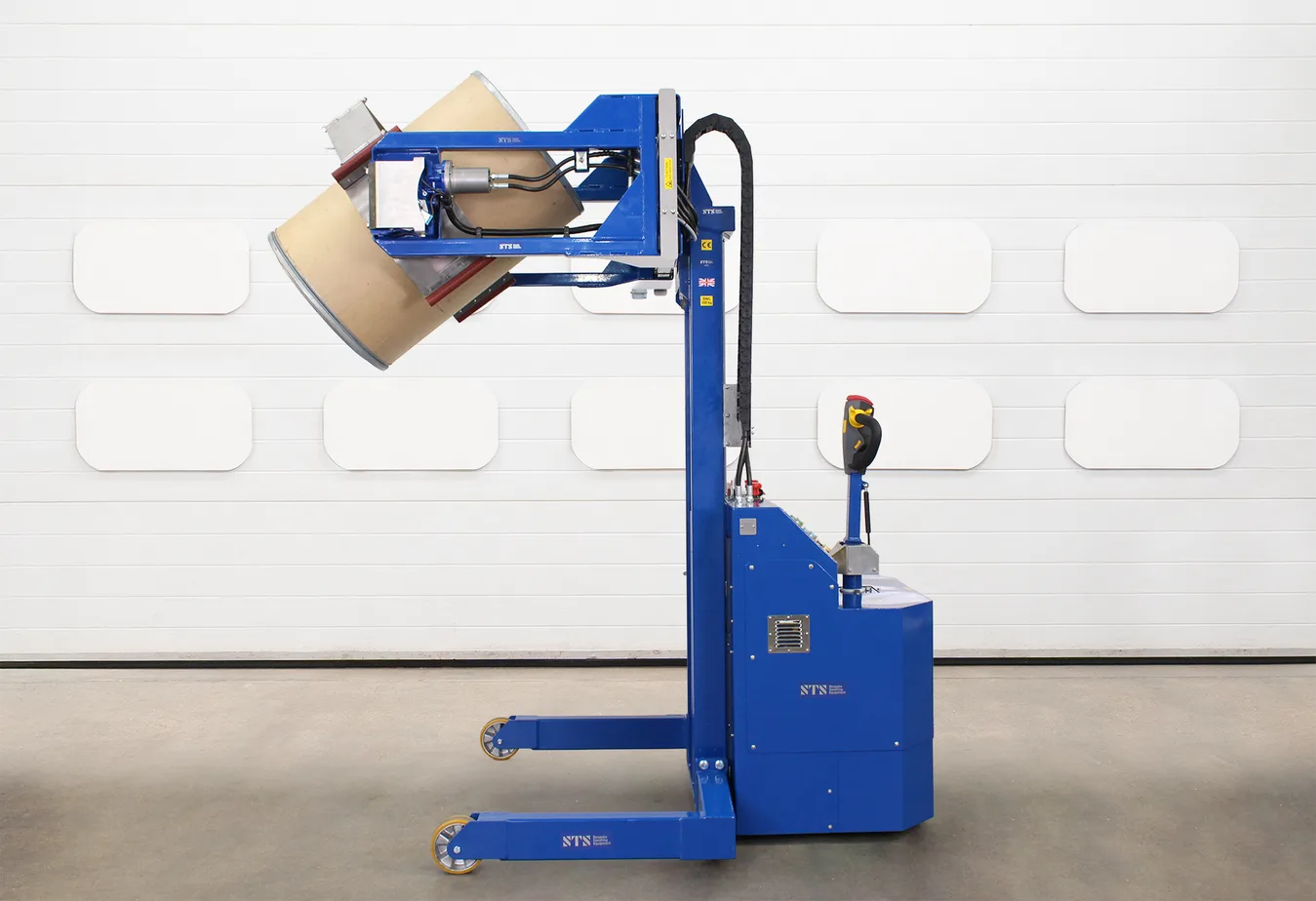

Electric Powered Drum Tipper
Safe working load (SWL)
300kg
Functions
Powered lift, clamp, rotation and drive
Power details
Two, on-board 100Ah batteries powering an electric-hydraulic pump and electric drive motor, mains 230v external smart battery charger
Controls
Silicone booted buttons, emergency stop, removable key switch, digital battery condition meter
Lift height
1500mm
Tipping clearance
1500mm at 15° tip angle / 1400mm at 30° tip angle (205 litre drum)
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Note: L-ring plastic drums require a separate INS02 attachment

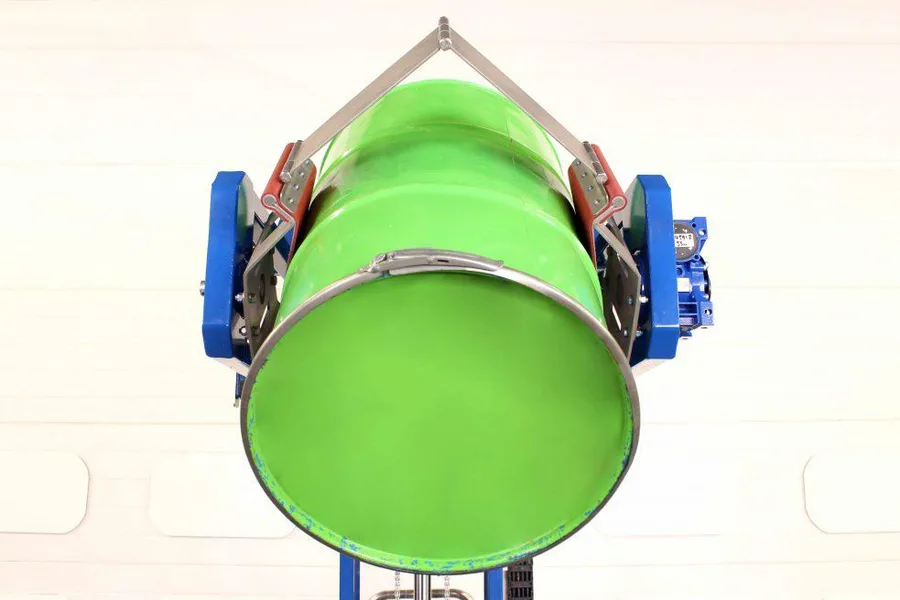

Clamping system
Two hydraulic clamping arms grip the outside of the drum. The system uses a constant-tension system to keep the drum safe and secure
Rotation via gearbox
Rotation via powered gearbox assembly, fully invert drums to 180° to empty the contents
Construction
Mild steel construction
Metal preparation
Grit blasted mild steel, vibratory-polished stainless steel parts
Surface finish
Primer and polyester powder-coated mild steel and stainless steel is smooth and clean
Powder coat colour
RAL 5010 (blue)
Guarding
Polycarbonate shatterproof clear guarding
Leg dimensions
Inside straddle width 850mm, total outside width 1080mm
Front wheels
Two fixed 160mm wheels, aluminium centred with polyurethane tyres and precision bearings
Noise
Less than 76 dBA
Compliance
CE / UKCA
STP05-RRH01-Ex
STP05-RRH01-Ex
ATEX Pneumatic Powered Drum Tipper
Safe working load (SWL)
300kg
Functions
Power lift/lower, power clamp, power rotation, manual push/pull
Power details
Air powered – requires min: 400L/min, optimum: 760L/min at 6 bar with 13mm flexible air hose
Pneumatic drive specification
Speed of travel 0.45m/s maximum based on a 6-bar air supply with 760L of flow, speed adjustment control on rear panel
Controls
Pneumatic control buttons and emergency stop
Lift height
1500mm
Tipping clearance
1470mm at 15° tip angle / 1400mm at 30° tip angle (205 litre drum)
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Note: L-ring plastic drums require a separate INS02 attachment
Clamping head
Hydraulic constant-tension clamping head with pressure gauge for handling all drum types – ‘hands off’ drum handling solution
Power Rotation
Rotation via powered gearbox assembly, fully invert drums to 180° to empty the contents
Construction
Mild steel construction with stainless steel clamp pads
Metal preparation
Grit blasted mild steel, vibratory-polished stainless steel parts
Surface finish
Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Powder coat colour
RAL 5010 (blue)
Guarding
Anti-static polycarbonate shatterproof clear guarding
Leg dimensions
Inside straddle width 850mm, total outside width 1080mm
Front wheels
Two fixed 160mm wheels, aluminium centred with electrically conductive polyurethane tyres and precision bearings
Rear wheels
Two tiller steered 160mm wheels, aluminium centred with electrically conductive polyurethane tyres and precision bearings
Noise
Less than 76 dBA
‘Ex’ features
Yes
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
