Description
Drummovers’ Electric Drum Lifter with Power Clamp can handle any barrels from 50 – 220 litres and its electric handling can improve safety and efficiency in your workplace. It also offers fully compliant electrical circuits with emergency stop buttons and keys with power isolators with up to 300kg of Safe Working Load (SWL).
- Electric lifting system
Smooth, powered lifting with minimal operator effort - Power clamp mechanism
Automatically grips and secures the drum firmly - Lift and transport functionality
Combines lifting and movement in one unit - Precise control operation
Allows accurate positioning and handling - Mobile design with wheels
Easy maneuverability across the workspace - High load capacity
Suitable for handling heavy industrial drums - Compatible with standard drum types
Works with steel, plastic, or fiber drums
- Warehouse drum handling
Moving drums between storage and work areas - Pallet loading and unloading
Lifting drums from pallets efficiently - Manufacturing and production lines
Supplying drums to machines or processes - Chemical and liquid handling industries
Safe transport of filled drums - Material positioning tasks
Accurate placement in tight or controlled spaces - General industrial use
Efficient and safe drum lifting and movement
Specifications
STE01-RRH01
STE01-RRH01
Electric Drum Lifter
Safe working load (SWL)
300kg
Functions
Powered lift/lower, powered clamp, powered rotation, manual push/pull
Power details
Two on-board 80Ah batteries powering an electric-hydraulic pump, mains 230v smart battery charger

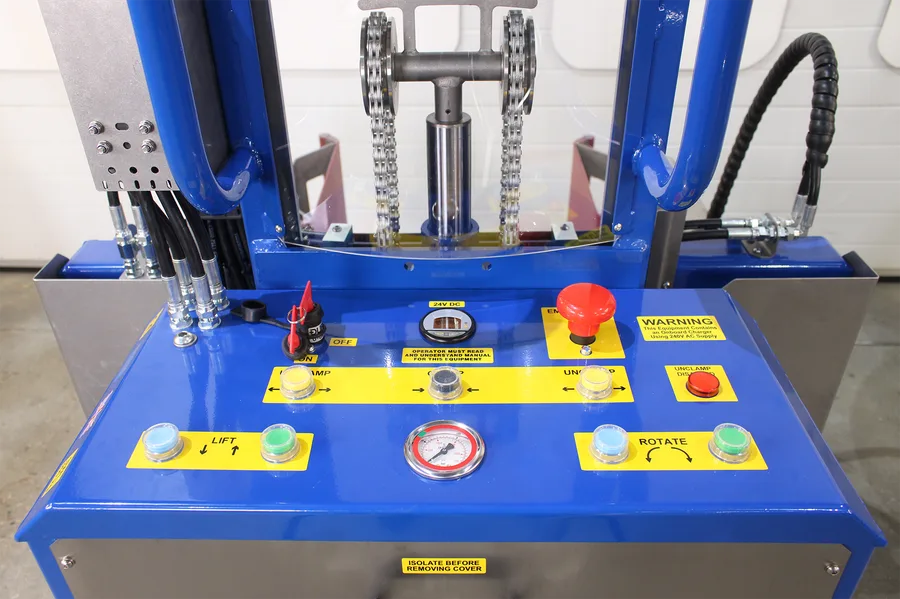

Controls
Silicone booted buttons, emergency stop, removable key switch, digital battery condition meter
Lift height
1500mm
Tipping clearance
1470mm at 15° tip angle / 1400mm at 30° tip angle (205 litre drum)
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)

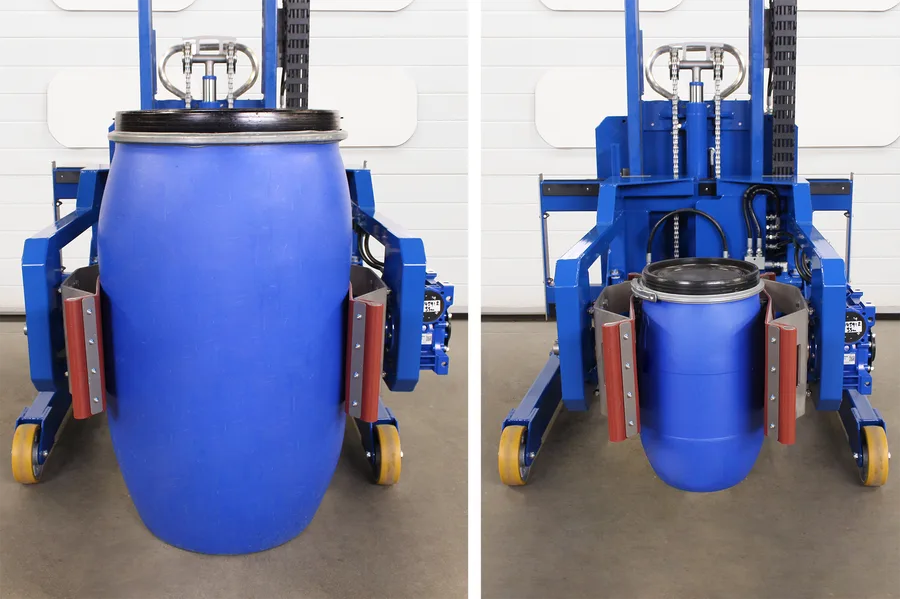

Clamping head
Hydraulic constant-tension clamping head with pressure gauge for handling all drum types – ‘hands off’ drum handling solution

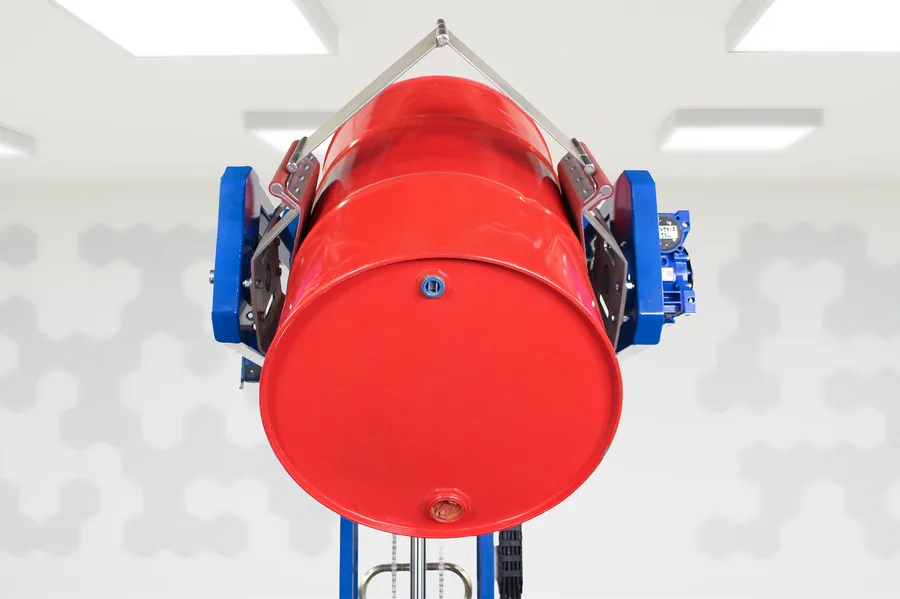

Powered Rotation
Rotation via powered gearbox assembly, fully invert drums to 180° to empty the contents
Construction
Mild steel with stainless steel arm covers and clamping pads
Metal preparation
Grit blasted mild steel, aqua blasted and vibro-polished stainless steel parts
Surface finish
Primer and polyester powder-coated mild steel, stainless steel are smooth and clean
Powder coat colour
RAL 5010 (blue)
Guarding
Polycarbonate shatterproof clear guarding
Leg dimensions
Inside straddle width 850mm, total outside width 1080mm
Front wheels
Two fixed 160mm wheels, aluminium centred with polyurethane tyres and precision bearings

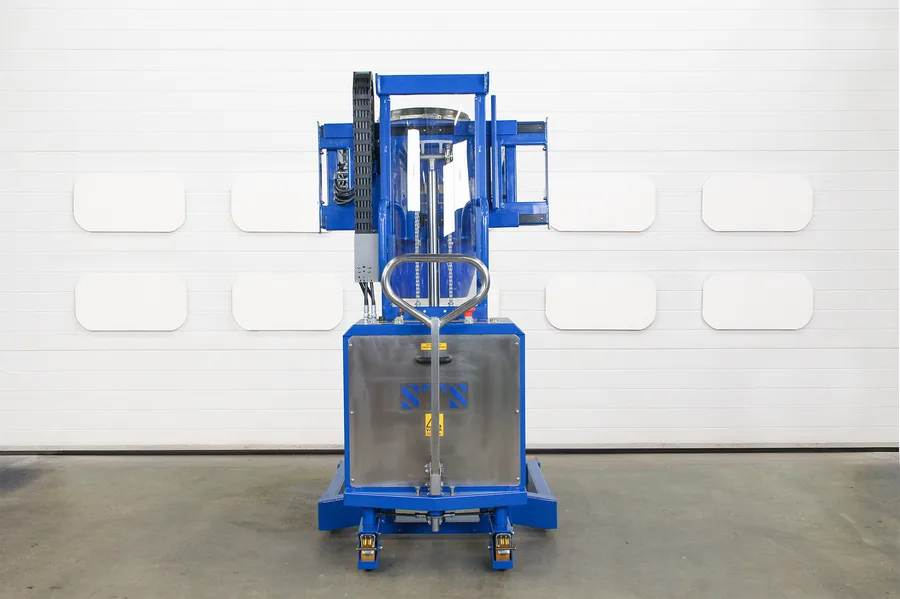

Rear wheels
Two tiller steered 160mm wheels, aluminium centred with polyurethane tyres and precision bearings
Noise
Less than 76 dBA
Compliance
CE / UKCA
