Description

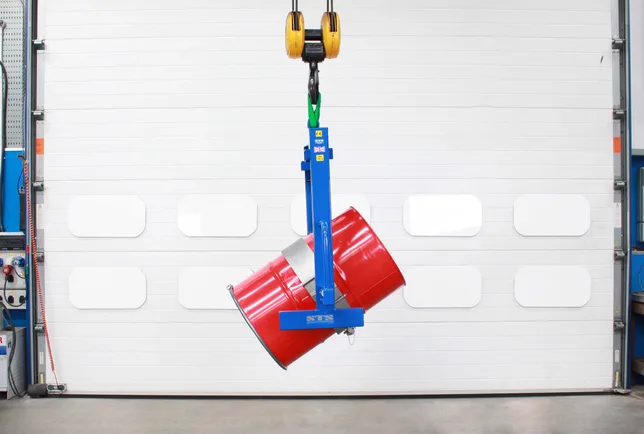

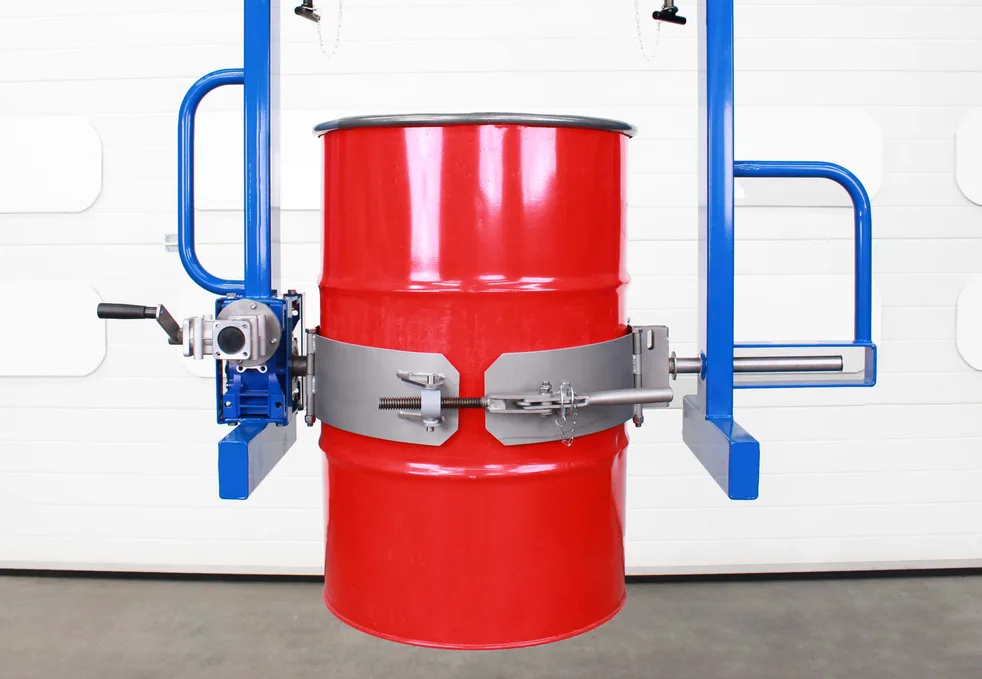

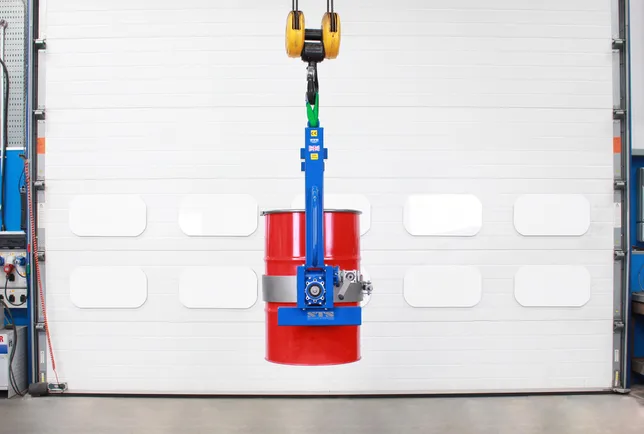

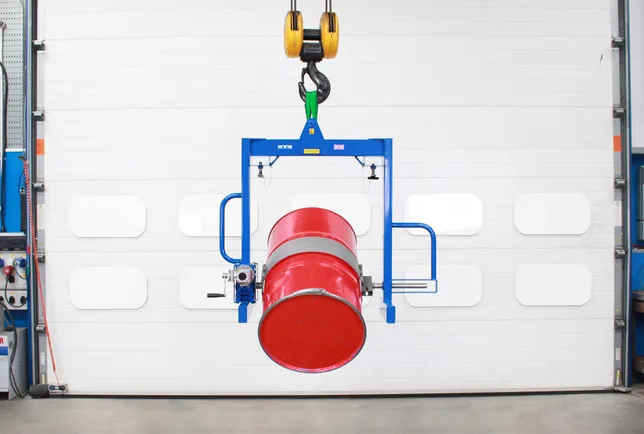

Our overhead Drum rotators can accommodate drums from as small as 50 litres up to 220 litres including steel and plastic drums. It comes with a second securing method called the Rim Locking Device that promptly eliminates any possibility of drum slipping while handling them. With its universal stainless steel rum Band, you can now handle from 50 up to 220 litres of drums while another unique feature, a Sliding Pivot allows you to quickly adjust the diameter of the band to lift drums of any size.
- Below-hook (overhead) design: Suspends from a crane or hoist for vertical drum handling
- Fixed band gripping system: Provides stable and secure hold for standard drum sizes

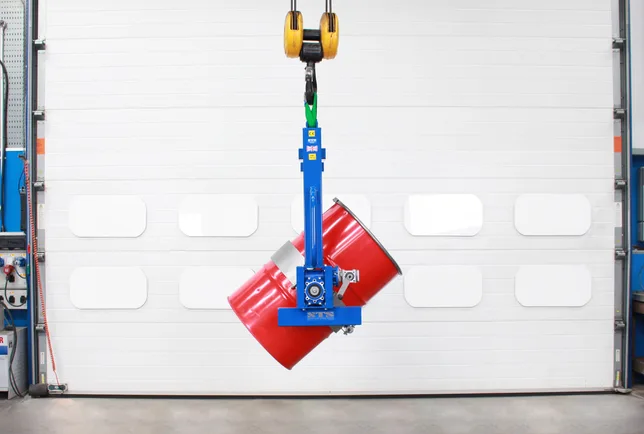

- 360° controlled rotation: Enables precise pouring, emptying, and positioning
- Manual or powered tilt options: Available in chain-operated or motorized versions
- High stability during operation: Ideal for repeatable and consistent drum handling tasks
- Overhead drum pouring operations: Transferring contents into elevated tanks or vessels
- Manufacturing and processing industries: Feeding materials into machinery from above
- Overhead drum pouring operations: Transferring contents into elevated tanks or vessels
- Manufacturing and processing industries: Feeding materials into machinery from above
- Chemical and liquid handling environments: Controlled and safe dispensing
- Facilities with cranes or hoists: Ideal where overhead lifting systems are used
- Standard drum handling setups: Best for operations using uniform drum sizes
Specifications
DRU02-FB
DRU02-FB
Overhead Drum Rotator (Fixed Band Band)
Safe working load (SWL)
350kg
Drum compatibility
Steel and plastic drums, 200-220 litres
Band assembly
Fixed rotator band with fast-acting over-centre clamp
Additional drum securing
Rim clamp included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Mild steel chassis, stainless steel rotator band assembly
Metal Preparation
Grit blasted mild steel, aqua blasted and vibro-polished stainless steel parts
Surface Finish
Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Powder coat colour
RAL 5010 (blue)
Compatible with overhead crane
Yes, large lifting pin

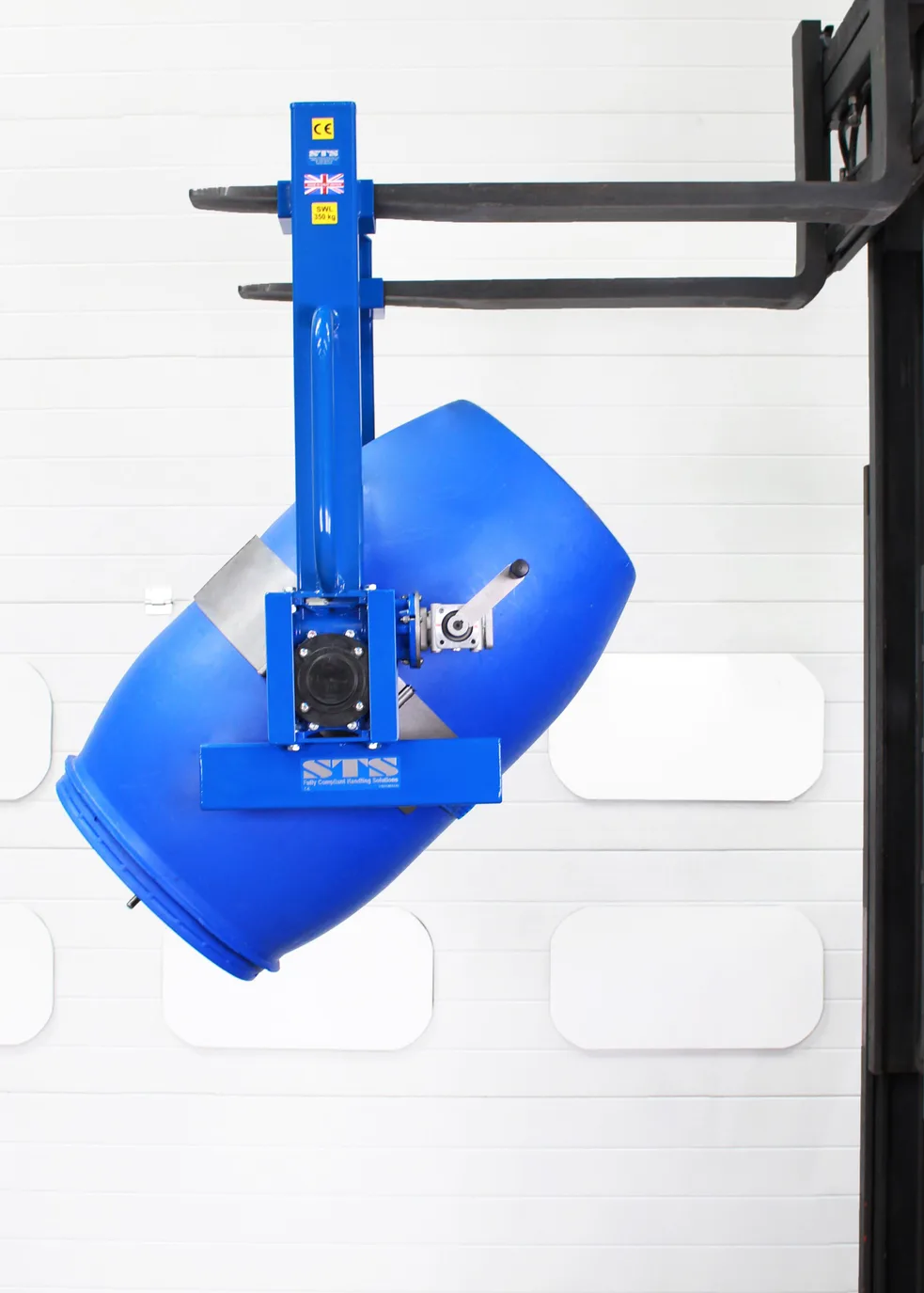

Compatible with forklift truck
Yes, fork pockets included
Compliance
CE / UKCA
Specifications
DRU02-FB-SS-Ex
DRU02-FB-SS-Ex
ATEX / UKEX Overhead Drum Rotator (Fixed Band)
Safe working load (SWL)
350kg
Drum compatibility
Steel and plastic drums, 50-220 litres
Drum compatibility
Steel and plastic drums, 50-220 litres (incl. MAUSER drums)
Band assembly
Segmented adjustable/universal band with 50mm stainless steel ratchet and polyester strap
Additional drum securing
Rim clamp included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Stainless steel chassis and rotator band assembly
Metal Preparation
Aqua blasted and vibro-polished stainless steel parts
Surface Finish
Smooth clean stainless steel finish
Compatible with forklift truck
Yes, fork pockets included
Compatible with overhead crane
Yes, large lifting pin
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
