Description

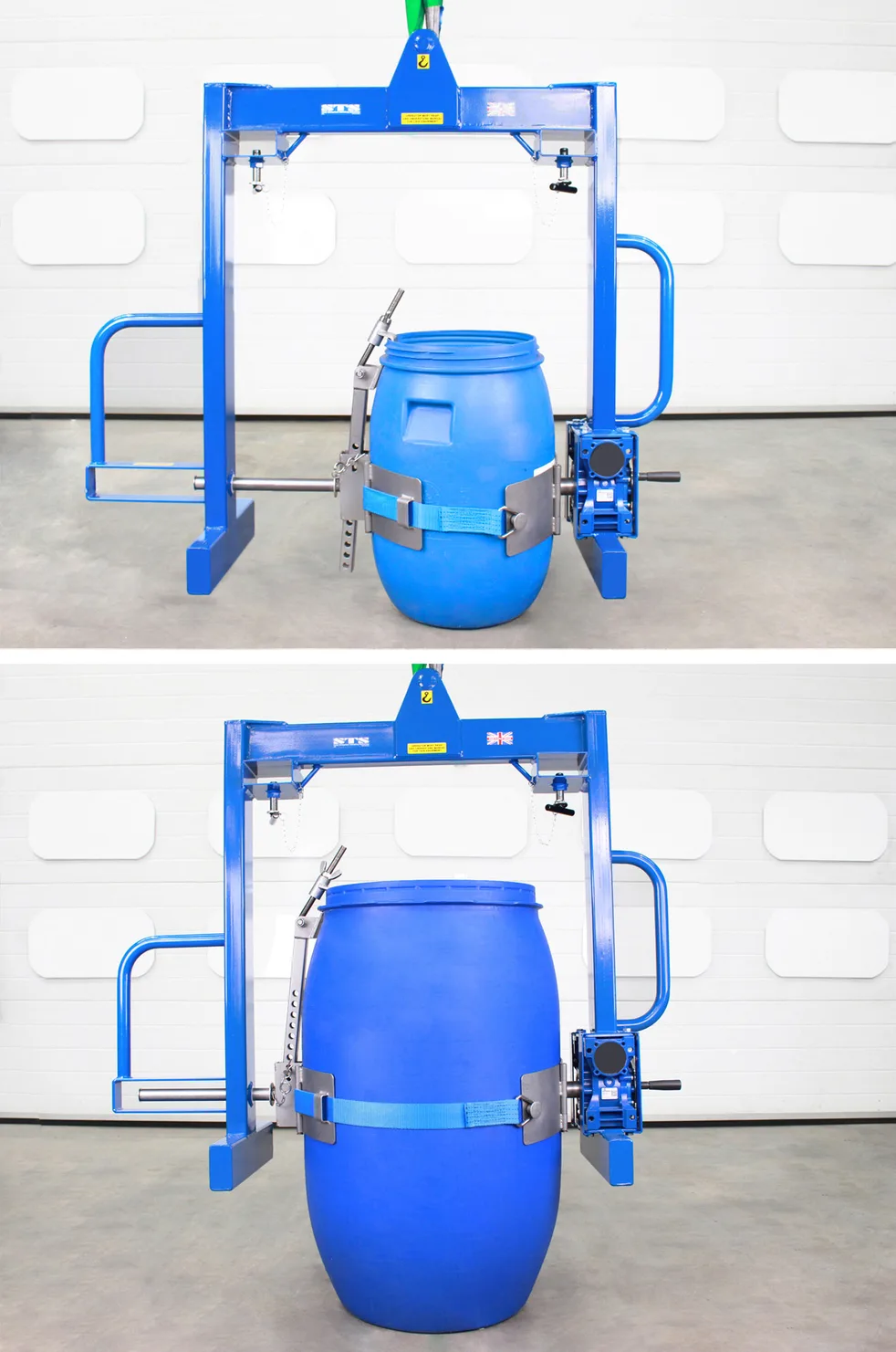

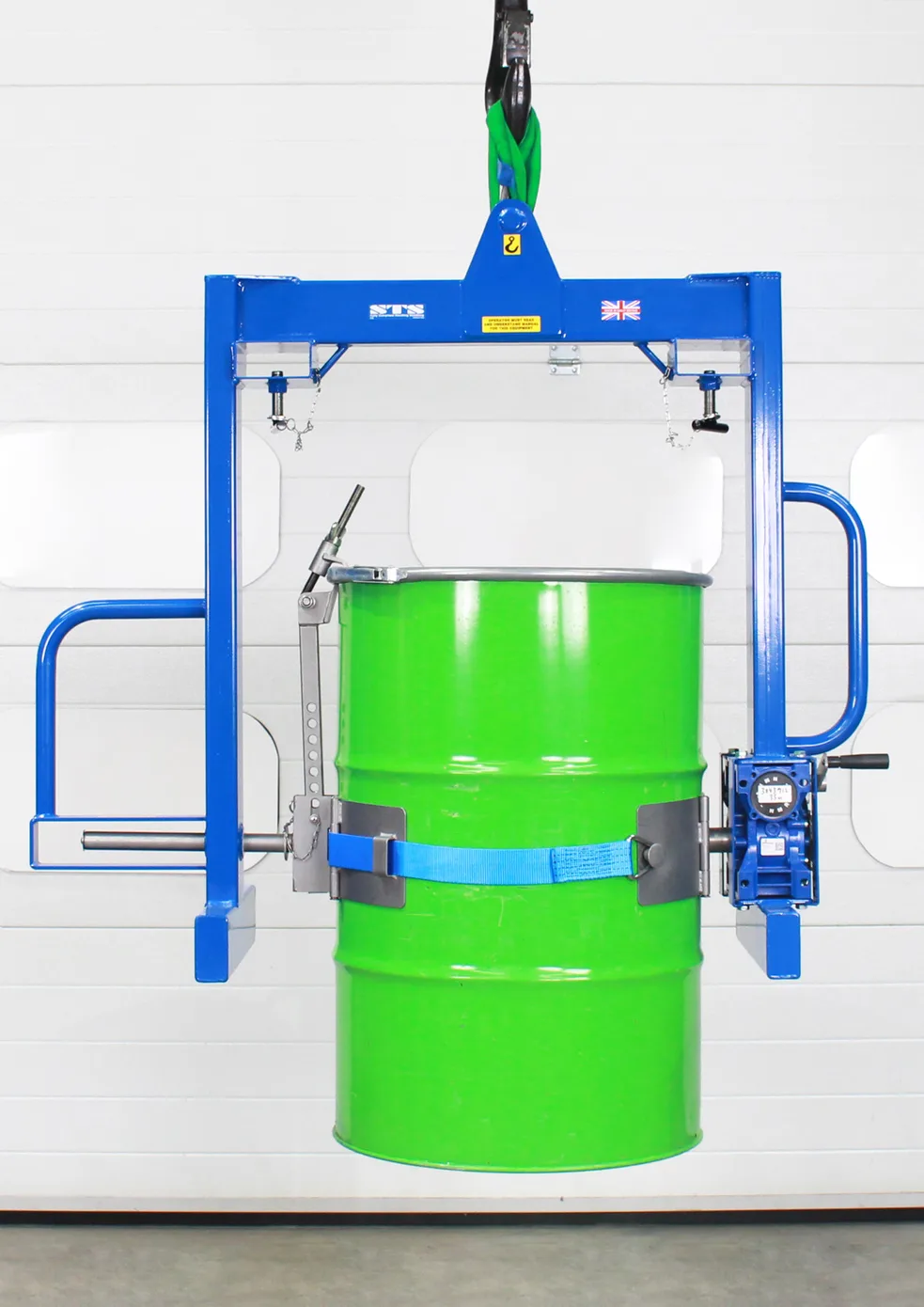

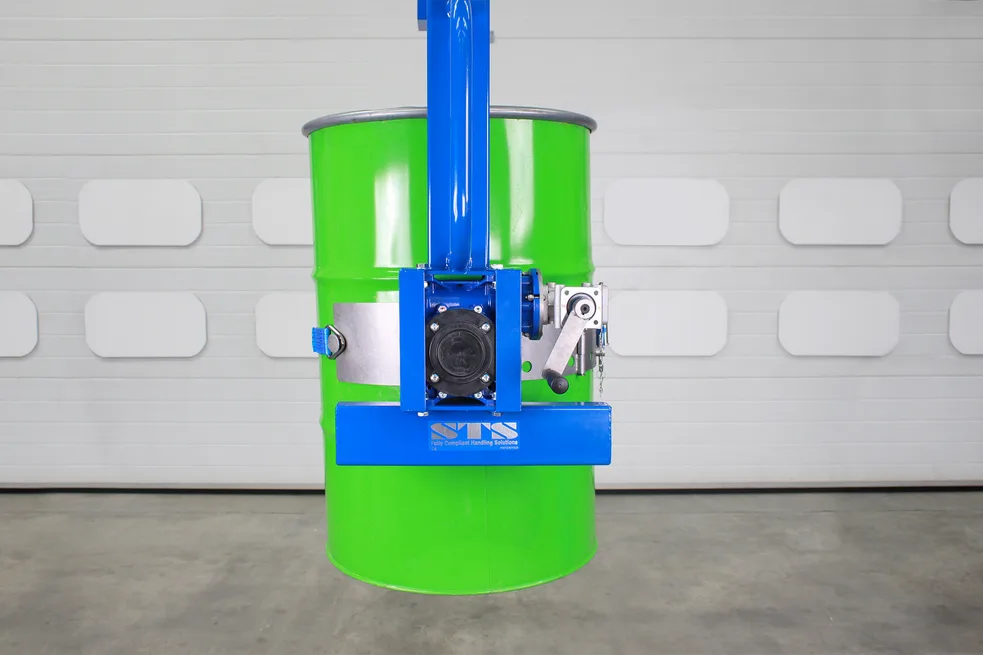

Our overhead Drum Rotators can accommodate drums from 50 litres to 220 litres easily, whether steel, plastic or fibre ones. One of its main features would be a second securing method called the rim locking device which allows the operator to safely handle a wide range of drums effectively. Its stainless steel band enables easily operating drums in different sizes while another cutting edge feature, its sliding pivot which can be mounted to the clamping band allows to quickly adjust the diameter of the band to manage drums in any given size from 50 t0 220 litres.

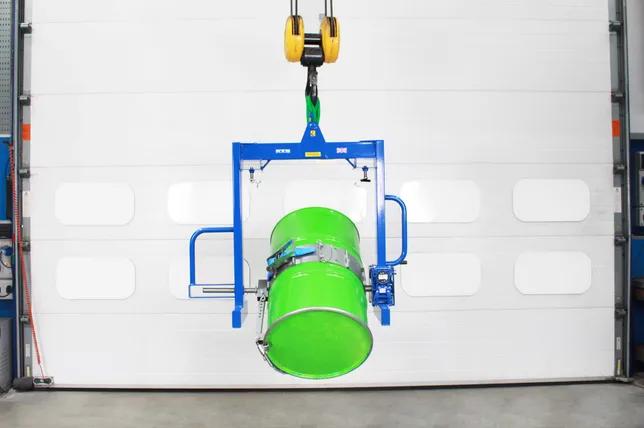

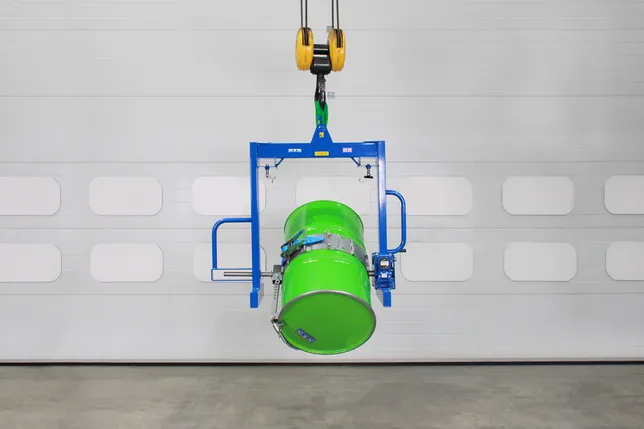

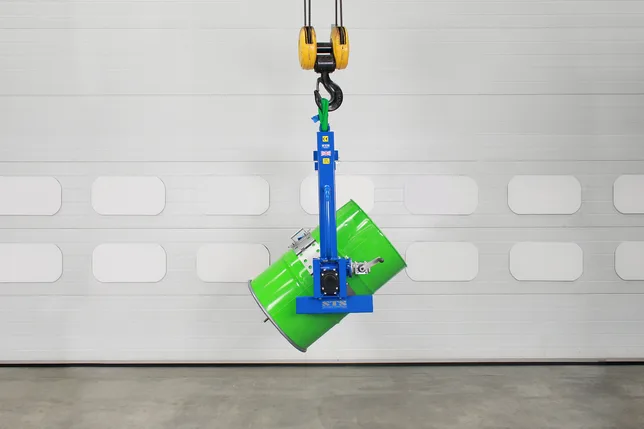

- Below-hook (overhead) design: Suspends from a crane or hoist for vertical lifting

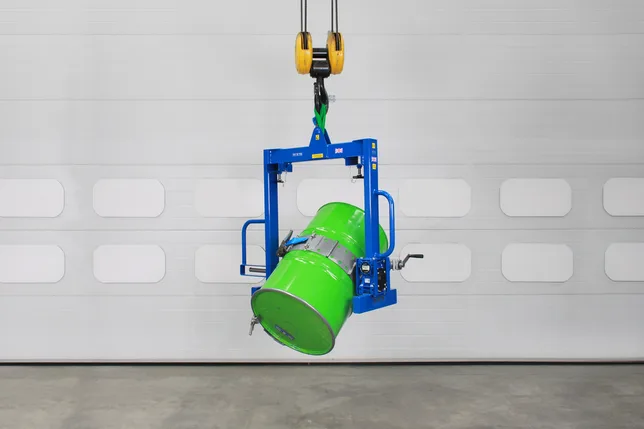

- Controlled drum rotation (up to 360°): Enables precise pouring, emptying, or mixing
- Manual or powered operation options: Available in chain, electric, or pneumatic models
- Secure drum gripping system: Holds the drum firmly during lifting and rotation
- High-level handling capability: Ideal for elevated pouring and positioning tasks
- Overhead drum pouring operations: Transferring contents into elevated tanks or vessels
- Chemical and process industries: Controlled handling of liquids and materials
- Manufacturing and production lines: Feeding materials into machinery from above
- Oil, paint, and lubricant handling: Accurate and safe liquid dispensing
- Facilities with cranes or hoists: Ideal for environments with overhead lifting systems
Specifications
DRU02
DRU02
Overhead Drum Rotator (Universal Band)
Safe working load (SWL)
350kg
Drum compatibility
Steel and plastic drums, 50-220 litres (incl. MAUSER drums)
Band assembly
Segmented adjustable/universal band with 50mm stainless steel ratchet and polyester strap
Additional drum securing

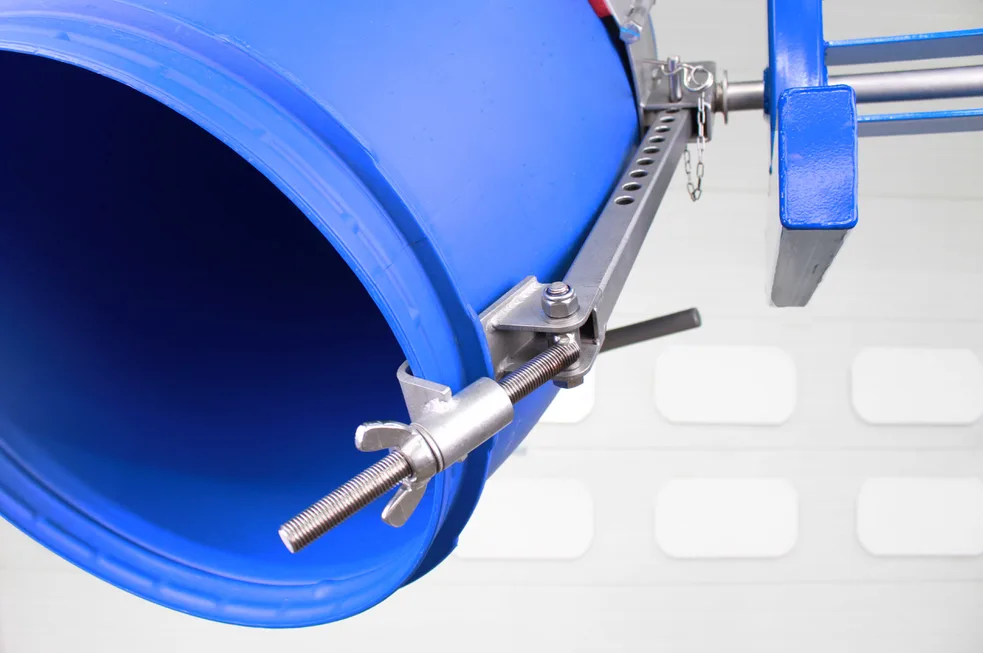

Rim clamp included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Mild steel chassis, stainless steel rotator band assembly
Metal Preparation
Grit blasted mild steel, aqua blasted and vibro-polished stainless steel parts
Surface Finish
Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Powder coat colour
RAL 5010 (blue)

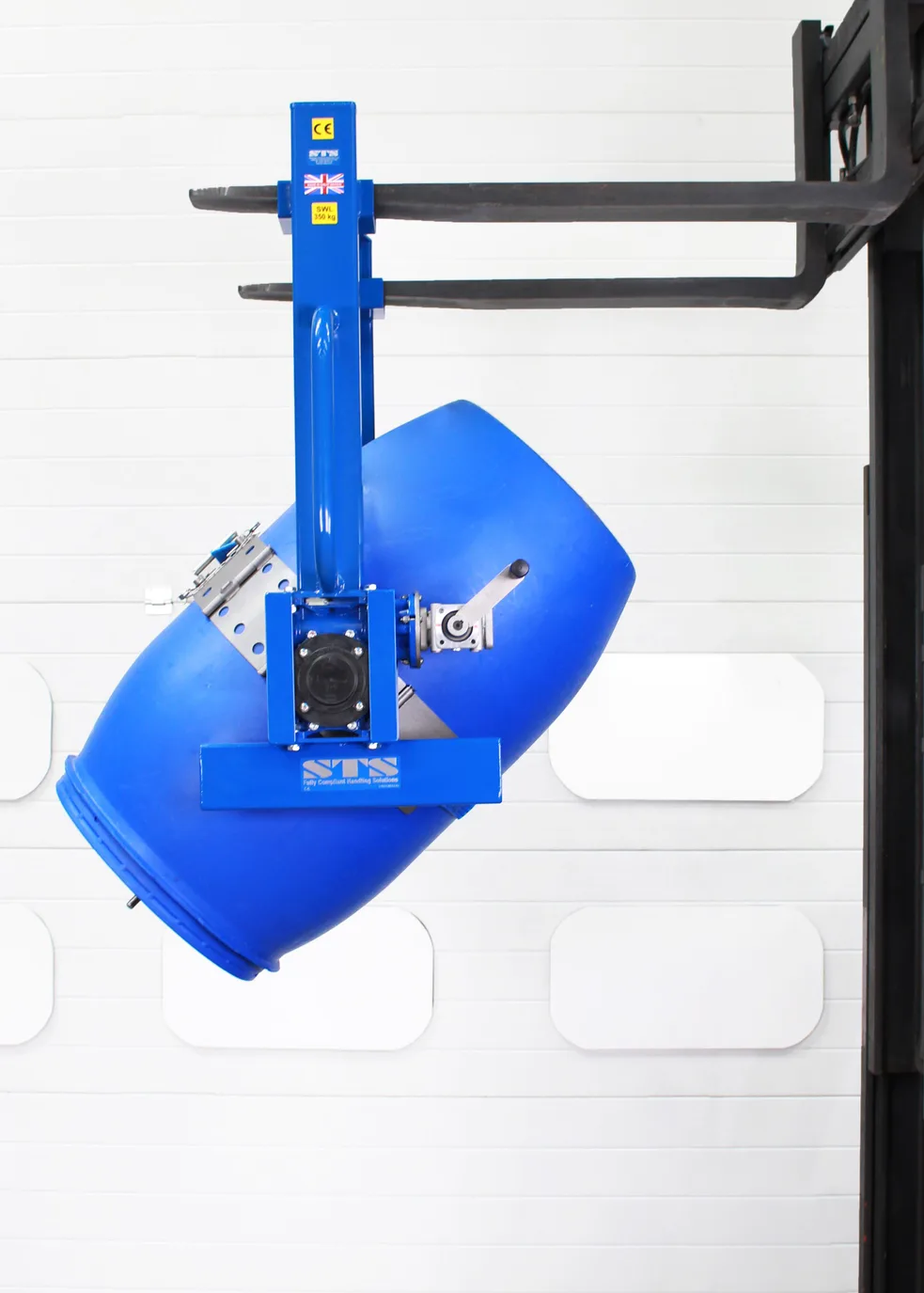

Compatible with forklift truck
Yes, fork pockets included
Compatible with overhead crane
Yes, large lifting pin
Compliance
CE / UKCA
DRU02-SS-Ex
DRU02-SS-Ex
ATEX / UKEX Overhead Drum Rotator (Universal Band)
Safe working load (SWL)
350kg
Drum compatibility
Steel and plastic drums, 50-220 litres (incl. MAUSER drums)
Band assembly
Segmented adjustable/universal band with 50mm stainless steel ratchet and polyester strap
Additional drum securing
Rim clamp included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Stainless steel chassis and rotator band assembly
Metal Preparation
Aqua blasted and vibro-polished stainless steel parts
Surface Finish
Smooth clean stainless steel finish
Powder coat colour
N/A
Compatible with forklift truck
Yes, fork pockets included
Compatible with overhead crane
Yes, large lifting pin
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
